110 Wall Mount Distribution Tower - ICC Tower Cable Management Trough-IC110 Wall Mount Distribution Tower Cable Ring- ICC Wall Mount Distribution Kit



IC110TK300

ICC wall mount distribution kitand tower is made of black powder coated CRS steel, designed to securely hold all components during and after termination provides a complete solution containing all the components required for terminating, labeling and wall mounting the IC110 wiring and cable management blocks in a stacked tower configuration.

ICC 25-PAIR CABLE ASSEMBLY, F-F, 90°, 5'- 25 Pair Cable Assemblies- Male/Male/FM/M/,M/FM- Avialable 5 foot-10 foot-15 foot-25 foot and cutom of ay length Catt (866)342-3721 -More Info

ICC Cat 5e 66 Blocks- List Price $ 5.95 each

We have modified our packaging of our 66 blocks to make them more contractor friendly. They are individually shrink wrapped and labeled for easy single unit sales. ICC now offers 66 blocks in quantities of 50 items per carton.  This will help inventory concerns at most distribution channels, along with convenient shipping both for ICC and its customers.  For additional information, please contact your customer service rep using the contact info below.  Pricing is still based on unit quantities -suggested list is n 5.95 each.  Product can be individually ordered or ordered in carton quantities

110 Wiring Blocks- More Info 110 Blocks are available for 19" rack mounting in both Category 6+ and 5e+ versions. Category 5e+ Panels are available in 100-, and 200 configurations with or without connecting clips. The Category 6+ panels are available in 96-, 192- and 288-pair configurations with or without connecting clips. Patch cord management is provided by a rack mount patch cord and cable management trough (sold separately).More Info

CAT 6 Wiring Blocks- More Info

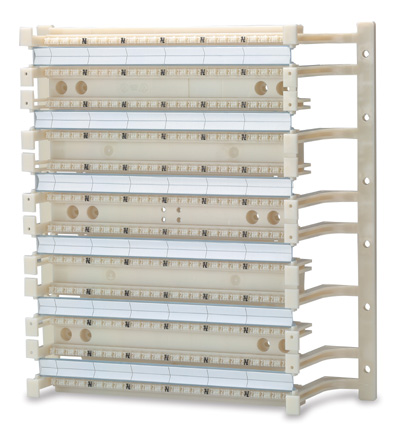

Category 6+ Wiring Blocks accommodate a range of conductor sizes from 22 to 26 AWG solid or stranded and are designed to exceed TIA/EIA-568-B.2-1 Category 6 component level specifications. Available in 48- (50), 96- (100), and 288- (300) pair sizes, they can be configured to build a cross connect system for any size or application. Wiring blocks can be ordered with mounting legs for routing cable behind the block, or without legswhere space is limited.

Category 6+ Connecting Clips will accept 22-26 AWG solid or stranded conductors and is available in a 4-pair size. IDC connecting block is color coded for easy conductor placement. Connecting blocks are sold in packages of 10.

CAT 5e and 110 Wiring Blocks -More Info

For voice & data cross-connect applications, Signamax provides a number of efficient solutions. Wiring Blocks accommodate a range of conductor sizes from 22 to 26 AWG solid or stranded and are designed to exceed Category 5e specifications. Available in 50-, 100-, and 300-pair sizes, they can be configured to build a cross connect system for any size or application. Wiring blocks can be ordered with mounting legs for routing cable behind the block, or without legs where space is limited.Connecting Clips will accept 22-26 AWG solid or stranded conductors and are available in 3, 4, and 5 pair sizes. Each IDC connecting block is color coded for easy conductor placement. Connecting blocks are sold in packages of 10.

IC110TK300 ICC Frame Alone: Part Number IC110TO300

ICC wall mount distribution tower and rame is made of black powder coated CRS steel, designed to securely hold all components during and after termination provides a complete solution containing all the components required for terminating, labeling and wall mounting the IC110 wiring and cable management blocks in a stacked tower configuration. The package includes a metal wall mounting frame, three 100-pair IC110 wiring blocks, three cable management blocks, sixty 4-pair and twelve 5-pair connecting blocks, label holders and labels, and all required hardware for wall mounting.
ITEM NUMBER DESCRIPTION

IC110TK300 110 Wall Mount Distribution Tower, 300-Pair

IC110 Wall Mount Distribution Tower Cable Channel

IC110TOCCH Frame Tower Cable Channel- Channel features swivel latches and cable tie anchoring points for vertical cable management

IC110TOCMT- Tower Cable Management Trough
IC110 Wall Mount Distribution Tower Cable Trough- Cable management trough is designed to mount low the frame and support cable routing.

IC110TOCMR- IC110 Wall Mount Distribution Tower Cable Ring

The cable management ring mounts on the side of the frame to provide flexibility for vertical cable management

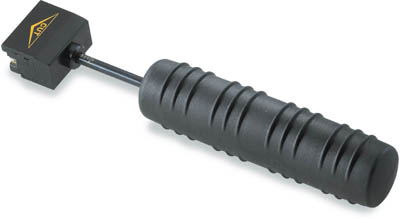

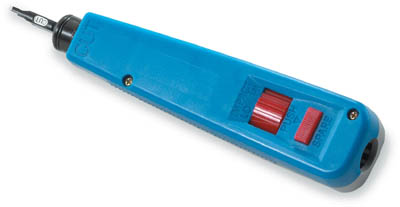

Termination Tools- More Info





Cable Management Troughs - More Info

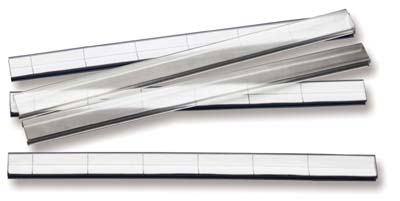

Designation Strips-More Info

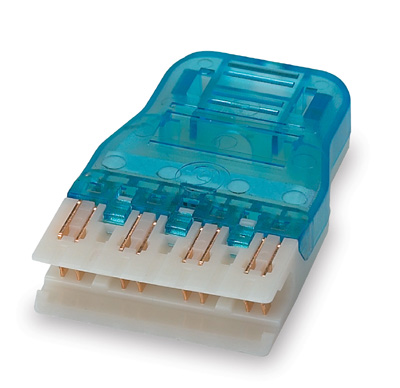

Category 6+ Field Installable Patch Cord Plugs-More Info

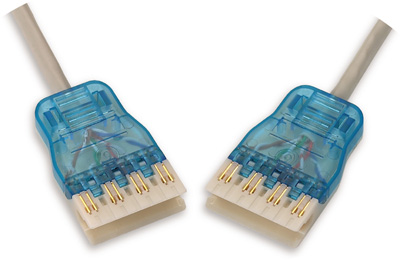

Category 6+ 110 Patch Cords-More Info

Category 5e + Field Installable Patch Cord Plugs-More Info

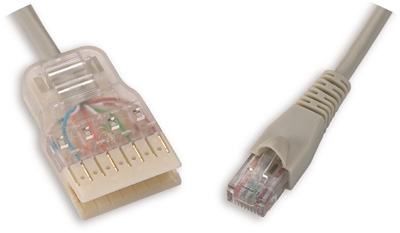

Category 5e + 110 Patch Cords-More Info
