Data Supply now carries Maxcell, the superior replacement for Maxcell's
new textile fabric innerduct which is the world's only flexible
fabric textile innerduct. Maxcell purchased Maxcell in 2006 and
all flexible fabric innerduct sales and support are now through

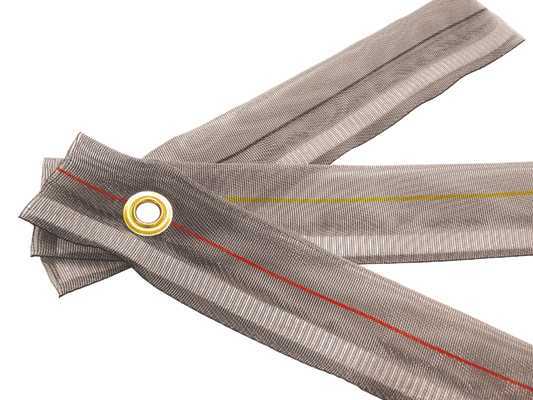

Maxcell. Maxcell is a woven sleeve innerduct product manufactured
from polyesters monofilaments and designed to optimize allocation
for cables within conduit structures. Maxcell has COLORED striping
on the actual sleeve- not on the pull rope -unlike the Maxcell innerduct
which has the "color strip on the rope. We also stock plenum
innerduct, fiber optic duct, conduit and raceway systems including
Fiber Duct, Outside Plant Conduit, Plenum Innerduct, Riser Rated
Innerduct, Toneable Duct, Corrugated Innerduct and more. Corrugated
HDPE Premier Corrugated HDPE is manufactured from High Density Polyethylene
(HDPE) and is intended to be placed inside of existing innerduct.
It¹s ideal for pulls under 1000 ft. and is designed to reduce
surface contact when pulling cable. This lightweight product offers
maximum flexibility, and allows for installation in small or restricted
areas. Corrugated duct is available in 1" and 11/4". The
standard color is orange and is offered in a variety of other colors.
Sequential marked footage is standard. Custom options, such as multiple
colors per reel and Slit Duct, are also available.
MaxCell is the only flexible, multi-celled, textile innerduct system designed specifically for the network construction industry.
The unique textile construction allows MaxCell to conform to the shape of cables placed within, greatly reducing the wasted space associated with rigid innerduct.
MaxCell Will:
· Reduce the number of conduits required for new network construction
· Minimize need for additional conduit in overlay applications
· Enable incremental cable deployment to match system requirements
MaxCell is a versatile solution for the complex problems faced by today’s engineers, contractors, and network providers. MaxCell configurations include one, two, and three cell designs for use in 1.25” or larger conduits; and most are available in Standard, Plenum, and Detectable versions.
Over 100 million feet of MaxCell innerduct have been successfully installed around the globe in a variety of applications including:
· Cable TV
· Telecom
· Power/Utilities
· Municipalities
· University, Corporate, and Hospital campuses
· Military and Government installations
For Further Information, click on the image below to visit the dedicated MaxCell website
MaxCell® Reel Sizes and Weights
Reel Information for 3” 3 Cell Product (Std/Plenum/Detectable)
Reel Size
Type of Reel
Std. Product Length
Reel Wt. w/Std. Prod. Length
Max Product On Reel
15"H x 15" W Box
Cardboard
250 ft
28 lbs
250
33"H x 15" W
Wood
500 ft
60 lbs
1250
33"H x 15"W
Wood
1,000 ft
98 lbs
1,250
54"H x 15"W
Wood
2,650 ft
270 lbs
4,400
72"H x 22"W
Steel
5,300 ft
487 lbs
7,100
72"H x 45"W
Steel
10,000 ft
840 lbs
13,500
Reel Information for 2” 2 Cell Product (Std/Plenum/Detectable)
Reel Size
Type of Reel
Std. Product Length
Reel Wt. w/Std. Prod. Length
Max Product On Reel
15"H x 15" W Box
Cardboard
250 ft
20 lbs
250
33"H x 15" W
Wood
500 ft
45 lbs
1,800
33"H x 15"W
Wood
1,000 ft
68 lbs
1,800
54"H x 15"W
Wood
2,650 ft
192 lbs
5,200
72"H x 15"W
Steel
5,300 ft
314 lbs
7,500
72"H x 22"W
Steel
10,000 ft
535 lbs
12,000
Reel Information for 2” 3 Cell Product (Std/Plenum/Detectable)
Reel Size
Type of Reel
Std. Product Length
Reel Wt. w/Std. Prod. Length
Max Product On Reel
15"H x 15" W Box
Cardboard
250 ft
25 lbs
250
33"H x 15" W
Wood
500 ft
55 lbs
1,200
33"H x 15"W
Wood
1,000 ft
89 lbs
1,200
54"H x 15"W
Wood
2,650 ft
248 lbs
4,400
72"H x 22"W
Steel
5,300 ft
475 lbs
7,900
72"H x 45"W
Steel
10,000 ft
750 lbs
15,000
Reel Information for 4” 3 Cell Product (Std/Detectable)
Reel Size
Type of Reel
Std. Product Length
Reel Wt. w/Std. Prod. Length
Max Product On Reel
15"H x 15" W Box
Cardboard
250 ft
30 lbs
250
33"H x 15" W
Wood
500 ft
64 lbs
1,000
33"H x 15"W
Wood
1,000 ft
107 lbs
1,000
54"H x 15"W
Wood
2,650 ft
295 lbs
2,900
72"H x 22"W
Steel
5,300 ft
575 lbs
5,900
72"H x 45"W
Steel
10,000 ft
930 lbs
12,500
Reel Information for Teardrop Product (Std/Plenum/Detectable)
Reel Size
Type of Reel
Std. Product Length
Reel Wt.w/Std. Prod. Length
Max Product On Reel
15"H x 15" W Box
Cardboard
250 ft
15 lbs
250
33"H x 15" W
Wood
500 ft
35 lbs
4,500
33"H x 15"W
Wood
1,000 ft
48 lbs
4,500
33"H x 15"W
Wood
2,650 ft
91 lbs
4,500
33"H x 22"W
Wood
5,300 ft
178 lbs
6,500
54"H x 22"W
Wood
10,000 ft
230 lbs
1
MXC-2002, 2" X 2 CELL, WITH PULL TAPE INSTALLED. PURPLE UNLESS OTHER COLOR SPECIFIED. 250 ft
MXC-2003, 2" X 3 CELL, WITH PULL TAPE. YELLOW UNLESS OTHER COLOR SPECIFIED. 250 ft
MXC-3456, 3" 3 WAY MULTICELL PRODUCT, WITH PULL TAPE. SPECIFIY COLOR: RED, BLACK, BLUE OR OTHER. 250 ft
MXC-4003, 4" 3 WAY MULTICELL PRODUCT, WITH PULL TAPE INSTALLED. GREEN UNLESS OTHER COLOR SPECIFIED. 250 ft
MXP-3456, 3" 3 WAY MULTICELL PRODUCT, PLENUM RATED, SMOKE FIRE RETARDANT MATERIAL, WITH PULL TAPE. SPECIFY COLOR: RED, BLACK, BLUE OR OTHER. 250 ft
MXD-3456, 3" 3 CELL "DETECTIBLE", WITH 1850LB PULL TAPE IN EACH CELL, SPECIFY COLOR: RED, BLACK, BLUE OR OTHER. 250 ft
MXD-4003, 4" 3 CELL "DETECTIBLE", WITH 1850LB PULL TAPE IN EACH CELL. GREEN UNLESS OTHER COLOR SPECIFIED.
Maximizing cable capacity within conduit is one of the most important aspects of successful cable installation. Conventional HDPE innerduct limits the amount of cable that can be installed. Maxcell conforms to the shape of cable instead of holding a circular profile. Maxcell improves space utilization up to 85 percent as compared to 60 percent or less with traditional rigid innerduct products. Now you can increase space utilization in both occupied and unoccupied conduit far beyond what traditional rigid innerduct can achieve. Installers can now dramatically simplify the installation process and greatly reduce installation costs.
Due to its single cell design, Maxcell can be engineered to accomodate many different cable sizes. Standard and detectable versions are available on 1000, 2500 and 5000-foot recyclable spools. Single-cell sizes currently available range from ¾" to 1¾" in ¼" increments. Customized configurations and packaging are also available.
Benefits of Using Maxcell®:
Maximizes conduit space utilization
Place several cables at once or add them one at a time
Install in preoccupied duct with existing cables or innerduct
Shortens location time - Detectable versions available (24 AWG)
Utilizes warehouse space efficiently
Easy to handle, ship, store and dispose
Product Features:
Lightweight and highly flexible
Individual reels can accomodate from 1 to 4-cell configurations
Protects against moisture absorption
Chemical and ultraviolet (UV) resistant
Weighs a fraction of traditional innerduct products
Conforms to available space during installation
Maintains a flat profile for shipping and storage
Packaged on a wooden spool with plastic fiber flanges
Pre-installed MULETAPE® printed with sequential footage markers
Customized packaging and configurations also available
Compatible with Multiple Installation Methods:
Maxcell can be easily installed by the traditional method of being pulled into the conduit or by using the air blown method using the NEPTCO MULEGUN®. The air blown method's ability to reduce installation time and labor makes the technique a growing trend
Call (866) 342-3721 Or Click On The Chat Button At The Top Of The Page To Talk To One Of Our Representatives
Before-Maxcell
After-Maxcell-80% Fill Ratio!
Maxcell® SC versus Traditional Innerduct
Maximizing
cable capacity within conduit is one of the most important aspects of successful
cable installation. And with Federal-Mogul Systems Protection Group's revolutionary
Maxcell® SC - that's exactly what we help you achieve. Conventional HDPE
innerduct limits the amount of cable that can be installed. Maxcell® SC
conforms to the shape of cable instead of holding a circular profile.
Maxcell® SC improves space utilization up to 85 percent as compared to 60 percent or less
with traditional rigid innerduct products. Now, you can increase space utilization
in conduit far beyond what traditional rigid innerduct can achieve. Installers
can now dramatically simplify the installation process and greatly reduce installation
costs.
Cable
Guide To Some of the Current Industries Now Utilizing this "New
Fabric Innerduct"
Fiber
Optic
Telephone
Power/Utility
Premise
Outside Plant Applications
All Underground Pipe Mediu
NOW
Maxcell "CAN BE AIRBLOWN" Details
coming soon
Cable
Guide allows you to place the maximum number of cables in any type of conduit
network structure. By taking the shape of the cables placed within, Maxcell
allows you to utilize up to 80% of available duct space.
Previously
limited to three cables in a four" conduit, Maxcell customers can now
place up to nine cables in the same conduit!
Maxcell works
with every known type of cable including: Fiber Optic -Telephone
Power-Utility -Premise -Outside Plant -Underground
Cable

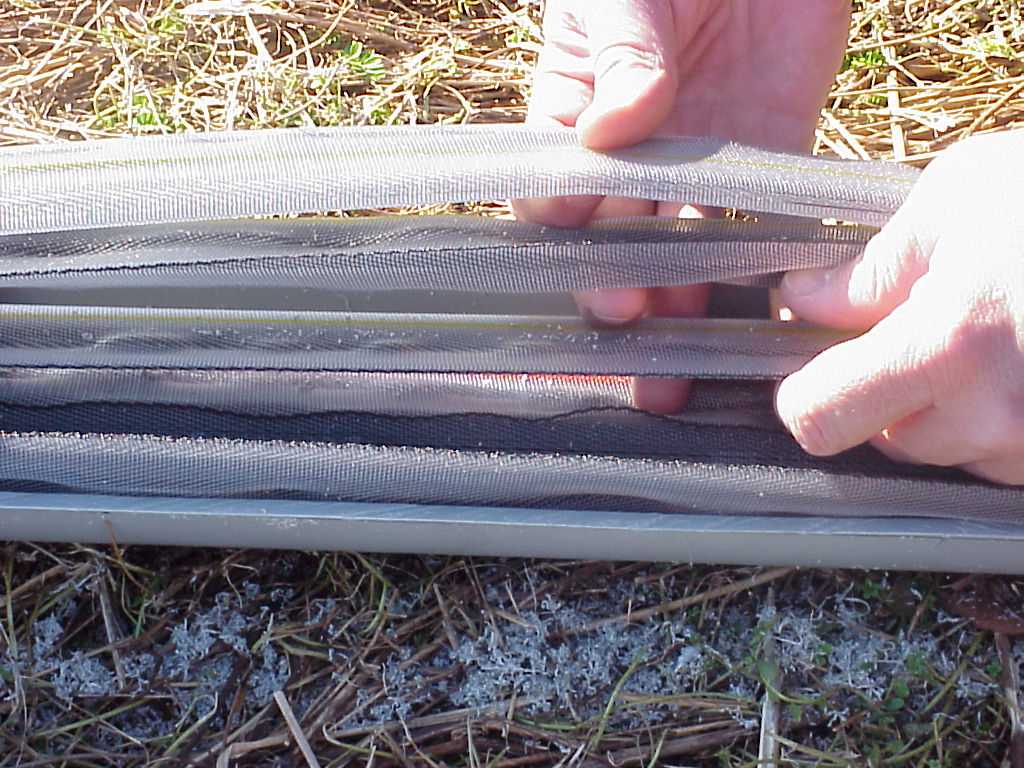

Guide is a woven sleeve manufactured from polyester monofilaments and designed
to optimize allocation of cables within conduit structures. The fabric takes on
the shape in the conduit allowing it to conform to the available
space. Maxcell simplifies the installation process by allowing several cables
to be placed at once so each cable to be added one at a time. This feature makes
it the perfect tool for installing new networks initially or up-grading existing
ones. Maxcell can also be installed into pre-occupied duct with existing cable-thus
maximizing cable density.
Pulling
tape and color tracers are both key features included in the design of Maxcell.
Pulling tape is included in each cell to assist in drawing cables over long lengths
with the help of pulling devices commonly used by installation contractors. The
colored tracers are included to easily identify each cell
Maxcell saves
you valuable resources by allowing you to minimize the size of duct structures
while maintaining cable density. In some cases, Maxcell eliminates the need
for new structures altogether by allowing you to utilize existing duct space.
Maxcell
is available in a range of configurations to meet various industry requirements
and conduit sizes. Installation and termination accessories are also available.
Toneable
Conduit Technical ReportCall For Pricing
(866) FIBER -21 or click on the chat button at the top of the page to talk with one of our representatives
We
can deliver a 500 Foot Reel of Corrugated Innderduct to Most Locations
In the United States For about $150.00 Per 500 Foot Coil
