Raceway Systems-Cable Management Solutions- Ladder Racks- Wholesale ladder Racks-Cable Management Solutions- WireTrays - Distribution Racks- Raceway- Relay Racks- CableTies-Cable Management- Cable Wraps-Finger Duct Panels





American Data Supply carries a complete line of cable management solutions including cable trays, wire trays, ladder racks, distribution racks, raceway and raceway systems that can be tailored to meet your specific needs. American Data Supply provides a complete line of cable management products from several manufacturers including Cablofil, Snaketray, Hendry, Newton, Signamax, Ortronics, ICC Ladder Racks, Cable Manager,Homaco, ADC, Bailywick Systems, Damac, ADC, and others. We offer wholesale ladder rack options to make every telephone closet or network bay installation neat, well organized and secure.American Data Supply's ladder racks are are available in 3, 4, 5 6, 7 ft, 10 ft. versions, and come in either a black powder coated or polished aluminum finish. For added cable management, vertical cable channels can be added to standard distribution racks. Our new ladder racks come in 5 foot lengths that contracotrs have been requesting to lower shipping costs. Now we can ship several ladder racks- 5 feet or less via UPS-meaning lower shipping costs. Need Raceway Systems? -more info

-

Cablofil Raceway Systems

Vutec-Wiremaid Raceway Systems

SnakeTray Raceway Systems



ICC Raceway Systems

ICC Finger Duct- Click Here

-

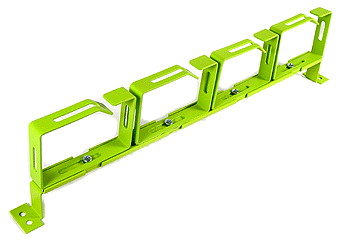

Cable Management Panels

1u - 5 Ring
Cable Management Panel
PT ATS34-208000

1u - 6 Ring
Cable Management Panel

PT ATS34-208010

1u - 20 Ring
Cable Management Panel

PT ATS34-207200





2u - 5 Ring
Cable Management Panel

PT ATS34-207000

2u - 8 Ring
Cable Management Panel

PT ATS34-207001

2u - 9 Ring
Cable Management Panel

PT ATS34-207300

2u - Channel
Cable Management Panel

PT ATS34-207800

2u - Dual Channel
Cable Management Panel

PT ATS34-208200

Side Mount
Cable Management Rings
(sold in pairs

PT ATS34-211200

Bridging Mount
Cable Management Rings
(sold in pairs)

PT ATS34-211300



1u Cable Management Rings
(sold in pairs)



Aluminum Distribution Rings

Cable Routing Mushrooms

Cable Mgmt Bar

ATS34-351900

Cable Mgmt Tiewrap Bar

ATS34-352500



2 x 6 Wall Stud Cable
 Reel Holder 16"

ATS34-620000



19" Rack or Cabinet Mount
Cable Mgmt Panel

ATS34-LPG2008









Cable Management Racks Distribution Racks Below
Data Cabinets-Racks-Raceways

Data Cabinets-Racks-Raceway Systems

Data Cabinets-Racks-Raceway Systems

Cable Management Racks- Accessories

Distribution Racks
CableTies

Raceway Systems
Vertical Rings
Rack Mount Rear Cable Management Bar
Metal Ring Panels
Metal Interbay Panels
Extended Cable Management Bracket
Clip Panels
Cable Management Ring Panels
Cable Management Panel Covers
Cable Management Interbay Panels
Cable Management Finger Duct Panels
Blank Panels

Distribution Rack-ICC CABLE MANAGEMENT RACK, BLACK, 7 FT ICCMSCMRH7 -- black (In Stock)

ICC's standard 19 inch cable management rack utilizes a hybrid steel construction, making it ideal for use with heavy data or electronic equipment. It has integral 6 inch cable channels along both sides of the rack to manage and conceal bulk cable vertically along the inside of the rack. The rack has cable tie anchor points throughout the cable channel to secure cable bundles with Velcro® cable ties. Includes 25 mounting screws

.

Cable Management Racks by Signamax

Cable Management Racks combine the features of a high quality relay rack, as well as effective cable routing and raceway facilities, all in one complete unit. All aluminum cable management rack allows for the mounting of a wide variety of 19 inch wide patch panels, hubs, switches, and related rack mount equipment. The rack is supplied with cable hangers, cable ties and generous provisions for organizing incoming cables for termination with effective patch cord management on the front. Racks are shipped with all assembly required plus an accessory pack that includes 20 cable ties, 16 cable hangers, 40 cuphead mounting screws, and grommeting for cable routing cutouts.

Standard equipments racks are designed for 19 inch rack mount equipment. Racks are constructed of aluminum and are available in a variety of standard heights. Each rack is drilled and tapped on both the front and the rear rails with 10-32 holes on EIA spacing. Standard rack finish is black. Racks are packaged knocked down for easy shipment.

Part Number

Cable Management Rack DescriptionPricing- more Info

1977-1032B

Signamax Cable Management Rack, 19"W x 84"H, Black Finish, 10-32 Holes

Cable Management Racks Pricing- more Info

Part Number

Cable Management Rack Description

RR-84B

Signamax Equipment Rack, 19"W x 84"H, Black Finish, 10-32 Holes

RR-48B

Signamax Equipment Rack, 19"W x 48"H, Black Finish, 10-32 Holes

RR-84

Signamax Equipment Rack, 19"W x 84"H, Milled Finish, 10-32 Holes

RR-48

Signamax Equipment Rack, 19"W x 48"H, Milled Finish, 10-32 Holes

___________________________________________________________________

------------------------------ Five Foot Ladder Racks-ICC Part Number:  ICCMSLST05

Runway- Raceway section is designed to support horizontal cable running over-head. Constructed of heavy duty 16-gauge steel with a durable powder coated finish, it can be easily attached to all ICC racks.

Part Number: ICCMSLST10

10 ft*., Runway, 12 in. Wide

*We Have Shorter Lengths!!

Runway- Raceway radius bend section is used to change the horizontal cable running over-head in a 90° vertical direction to route cables downward to a vertical ladder.

Part Number: ICCMSLOR90

Runway Radius Bend, 12 in. Wide

Runway-raceway radius bend section is used to change the horizontal cable running over-head in a 90° vertical direction to support ceiling cable entry.
Part Number:ICCMSLIR90

Runway Radius Bend, 12 in. Wide

Turn section is designed to change the horizontal cable running over-head in a 90° flat turn.

Part Number:ICCMSLFT90

Runway 90° Turn, 12 in. Wide

    Click Here for Installation Instructions and detailed pictures of Ladder Rack

Raceway Systems Available


Cablofil Raceway Systems

Vutec-Wiremaid Raceway Systems

SnakeTray Raceway Systems

ICC Raceway Systems

ICC Finger Duct- Click Here ------- ------- ICC Racks- Cable Management

Horizontal Finger Duct Vertical Finger Duct

- -SnakeTray Raceways

Snake Tray Snake Tray



Hendry Racks!

More Info

Distribution RacksClick --------Ladder Racks Click

NEW.......Cable Wrap-CableTies.....


Cable Ties-Cable Wrap-Cable Catch-Cable Hangers

American Data Supply 's cable management racks are made of rugged steel and feature a black powder coating. All rack side rails have openings for cable routing, and provide cable tie anchors in various locations. These racks are available in 4 and 7 foot models. In addition to floor mounted racks, a variety of wall mount racks and brackets are available to fill specialized applications. To add to the versatility of the distribution and cable management racks, American Data Supply offers a selection of shelves to support components that do not need to be rack mounted.

Cable management panels are available to support bulk cable or patch cords horizontally or vertically. These panels come with standard metal, or durable plastic rings. Plastic snap-on covers can be added to the plastic panels to create a neat, well-organized appearance. Brackets, vertical rings, and management bars round out American Data Supply 's Cable Management Solution.

New Ladder Rack Systems!

Call (866) 342-3721 Or Click On The Chat Button At The Top Of The Page To Talk To One Of Our Representatives

Wholesale Ladder Racks, Ladder Rack Systems & Raceway Systems

Ladder Rack Systems

NEW Ladder Rack Runway- 5 Foot Lengths Can Be Shipped Via UPS Ground saving your LOT$$ of Money!

NEW Ladder Rack Accessories

NEW Ladder Rack Runway Mounting Kits

NEW Straight Ladder Rack Runway
NEW Ladder Rack Runway 900 Flat Turn
NEW Ladder Rack Runway 900 Inside Corner Radius Bend
NEW Ladder Rack Runway 900 Outside Corner Radius Bend

Key features:

  • Robust 16-gauge steel construction with a durable powder coated finish.
  • Configuration flexibility adaptable to a wide range of access, run and cable delivery constraints
  • Easy to install with attaching hardware included where necessary.

ICC Raceway System Cutting Tool-Part#  ICACSTPE60 This ICC Raceway System Cutting tool make cutting raceway a "snap".





Designed to complement American Tech Supply's line of racks, panels and cross-connect products, we offer Hendry, B-line, NewtonKewaunee and ICC's, ladder rack system. This ladder rack system offers a complete set of cable installation, routing and management components that are engineered for configuration flexibility and installation versatility. Please note our ladder rack products below including our ladder rack inside corner, ladder rack outside corner, and ladder rack flat turn models below.

ICC Raceway System Cutting Tool-Part#  ICACSTPE60 This ICC Raceway System Cutting tool make cutting raceway a "snap".



Runway section is designed to support horizontal cable running over-head. Constructed of heavy duty 16-gauge steel with a durable powder coated finish, it can be easily attached to all ICC racks.

Part Number: ICCMSLST10

10 ft*., Runway, 12 in. Wide

*We Have Shorter Lengths!!

Runway radius bend section is used to change the horizontal cable running over-head in a 90° vertical direction to route cables downward to a vertical ladder.

Part Number: ICCMSLOR90

Runway Radius Bend, 12 in. Wide

Runway radius bend section is used to change the horizontal cable running over-head in a 90° vertical direction to support ceiling cable entry.
Part Number:ICCMSLIR90

Runway Radius Bend, 12 in. Wide

Turn section is designed to change the horizontal cable running over-head in a 90° flat turn.

Part Number:ICCMSLFT90

Runway 90° Turn, 12 in. Wide

    Click Here for Installation Instructions and detailed pictures of Ladder Rack

 ITEM NUMBER DESCRIPTION
 ICCMSLST10 Runway Section, 12-inches Wide x 10-foot Length
  ICCMSLFT90   90 Turn Section, 12-inches Wide, flat turn.
  ICCMSLIR90   Inside Radius Bend Section, 12-inches Wide
  ICCMSLOR90   Outside Radius Bend Section, 12-inches Wide
  ICCMSLAWSK  Kit, Wall Support, 12-inches Wide
  ICCMSLTWSK  Kit, Wall Support, Triangle, 12-inches Wide
  ICCMSLVWBK  Bracket, Vertical Wall Mount
  ICCMSLCMRK  Kit, Ceiling Mount and Rod (2 Threaded rods included)
  ICCMSLMFFK  Kit, Foot Floor Mount
  ICCMSLRRBK  Bracket, Ladder to Relay Rack, 12-inches Wide
  ICCMSLEBSK  Kit, End-to-end Butt Splice
  ICCMSLTJSK  Kit, Runway Section, T-Junction Splice
  ICCMSLCRPK  Kit, Cable Retaining Posts (includes 2 posts)
  ICCMSLCRDK  Runway Center Radius Drop, 12-inches Wide

  Miracel 19" Distribution Rack-Lab Rack NO 19

Miracel Network Racks
and Accessories (PDF, 1.0 MB
)



■ with fixed 19" built-in unit on the front
■ for built-in units in accordance with IEC 297 3
■ flexible assembly of the built-in units using T slots

For the installation of
■ 19" components on the front
■ equipment with maximum width of 450 mm
■ installation accessories

Jumpering compartment
■ front 123 mm

Load rating
■ 5000 N static

Tests
■ earthing according to VDE 0100 part 540
■ vibration test according to MIL-STD 810 E

Material / Finish
■ basic rack, extruded aluminium, polished
■ corner piece die-cast aluminium
■ multifunctional frames and 19" angular extrusions sheet steel, zinc-plated

Supply schedule
1 basic unit
2 19" aluminium vertical extrusions with T slot and increment slide for spring nut M5
2 multifunctional frames for cable clamping and universal assembly options
4 levelling feet (0-25 mm)

How supplied
■ assembled

Please note
For the installation of chassis runners and 19" shelves, additional 19"- are required at the rear.
Rack Suites

To create a rack suite, per connection you require a set of suite connectors BN 1.130.935.7





Miracel NO19 (Width 600mm) with T-slot profile Order Number
nominal depth chassis depth installation height installation height nominal height weight
T [mm] t [mm] h [U] h [mm] H [mm] [kg]
600 435 23 1052 1200 14 01.135.793.3
37 1652 1800 16 01.135.795.3
41 1852 2000 17 01.135.796.3
46 2052 2200 18 01.135.797.3
700 435 23 1052 1200 15 01.135.799.3
37 1652 1800 17 01.135.801.3
41 1852 2000 18 01.135.802.3

800 635 23 1052 1200 16 01.135.817.3
37 1652 1800 18 01.135.819.3
41 1852 2000 19 01.135.820.3
46 2052 2200 20 01.135.821.3
900 735 37 1652 1800 19 01.135.842.0
41 1852 2000 20 01.135.843.0
46 2052 2200 21 01.135.844.0



  Miracel 19" Distribution Rack – Network Rack NS 26

Miracel Network Racks
and Accessories (PDF, 1.0 MB)


With fixed 19" installation on the front and rear for components in accordance with IEC 297-3
■ Installation of chassis runners and 19" shelves possible
■ Cable entry via bottom and top cover
■ Door opening angle, 180°

Variants
Type 1
■ single rack (with side panels)
Type 2
■ rack for rack suite (without side panels)

For the installation of
■ 19" components on the front and rear
■ equipment with maximum width of 450 mm
■ installation accessories

Jumpering compartment
■ front 123 mm

Load rating
■ 5000 N static

Degree of protection
IP 20 (upgradeble to IP 55)

Tests
■ Earthing in accordance with VDE 0100 T 540
■ IP Test in accordance with DIN 40 050 / IEC 529
■ Earthing in accordance with VDE 0100 T 540
■ IP Test in accordance with DIN 40 050 / IEC 529

Material / Finish
■ basis rack, extruded aluminium, polished
■ corner pieces, die-cast aluminium, polished
■ cover zinc-plated sheet steel, powder-coated textured
■ doors, sheet steel, ,powder-coated structure, glass infill front door, single security-glass panel, 4 mm
■ multifunctional members an 19"-extrusions sheet steel, zinc-plated

Colour
Final digit of order number .1:
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7035 light grey
Final digit of order number .8:
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7021 black grey

Supply schedule

Type 1
1 Basic rack 1 19" Vertical extrusions, sheet steel with mounting holes 2 Multifunctional struts for cable clamping and universal mounting options 2 Side panels with quick connectors 1 Cover with integrated cable entry 1 Front door, single, single safety glass panel, with handle and mounting for cylinder lock 1 Rear door, single, sheet steel, with handle and mounting for cylinder lock 1 Earth set, complete ( VDE 0100 ) 4 Levelling feet
Type 2
1 Basic rack 4 19" Vertical extrusions, sheet steel with mounting holes 2 Multifunctional struts for cable clamping and universal mounting options 1 Cover with integrated cable entry 1 Front door, single, single safety glass panel, with handle and mounting for cylinder lock 1 Rear door, single, sheet steel, with handle and mounting for cylinder lock 1 Earth set, complete ( VDE 0100 ) 4 Levelling feet
How supplied
■ assembled







Miracel NS26 (Width 800) Order Number
type width height depth height installation height useable depth weight
  [mm] [mm] [mm] [U] h [mm] t [mm] [kg]
with side panels 800 2000 600 41 1900 365 108 01.136.274.X
8700 2000 800 41 1900 565 116 01.136.280.X
800 2200 800 46 2100 565 126 01.136.281.X
800 2000 900 41 1900 665 120 01.136.286.X
800 2200 900 46 2100 665 130 01.136.287.X
without side panels 800 2000 600 41 1900 365 99 01.136.300.X
800 2000 800 41 1900 565 105 01.136.306.X
800 2000 900 41 1900 665 115 01.136.312.X

Replace X with the digit representing your colour choice

.1 = RAL 9011 / RAL 7035
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7035 light grey

.8 = RAL 9011 / RAL 7021
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7021 black grey


Miracel 19" Distribution Rack


  Miracel 19" Distribution Rack NS 19.8, single winged

Miracel Network Racks
and Accessories (PDF, 1.0 MB


■ with fixed 19" built-in unit on the front
■ for built-in units in accordance with IEC 297 3
■ flexible assembly of the built-in units using T slots
■ cable entry via plinth and cover
■ heat loss discharge via ventilation dome
■ door opening angle 180°

Variants
Type 1
■ single rack (with side panels)
Type 2
■ rack for rack suite (without side panels)

For the installation of
■ 19" components on the front
■ equipment with maximum width of 450 mm
■ installation accessories

Jumpering compartment
■ front 123 mm

Load rating
■ 5000 N static

Degree of protection
Type 1
■ IP 40 (upgradeble to IP 55)

Tests
■ earthing according to VDE 0100 P 540
■ vibration test according to MIL-STD 810 E
■ IP test according to DIN 40 050 / IEC 529

Material / Finish
■ Basic rack, aluminium extrusion, polished
■ Corner piece, die-cast aluminium, polished
■ Covers, sheet steel, zinc passivated, powder-caoted, textured
■ Doors, sheet steel, powder-coated, textured, glass infill, front door, single safety glass panel, 4 mm
■ Multifunctional struts and 19" extrusions, sheet steel, zinc passivated

Colour
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7035 light grey

Supply schedule
Type 1
1 Basic unit
2 19" aluminium vertical extrusion with T slot and increment slide for spring nut M5
2 Multifunctional frame for cable clamping and universal assembly options
1 Cover with ventilation dome and integrated cable entry
1 Front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 Rear door, single-winged, sheet steel, with handle and fixing for locking cylinders
2 Side panels with quick locking
1 Plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 lateral plinth trim, closed
2 Plinth trim for front and rear, with airing vents and fixing for filter mat
1 Complete earthing test (VDE 0100)
Type 2
1 Basic unit
2 19" aluminium vertical extrusion with T slot and increment slide for spring nut M5
2 Multifunctional frame for cable clamping and universal assembly options
1 Cover with ventilation dome and integrated cable entry
1 Front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 Rear door, single-winged, sheet steel, with handle and fixing for locking cylinders
1 Plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 Plinth trim for front and rear, with airing vents and fixing for filter mat
1 Complete earthing test (VDE 0100)

How supplied
■ assembled

Please note
For the installation of chassis runners and 19" shelves, additional 19"- are required at the rear. (in the Miracel 19" distribution rack NS 25 as standard).
Rack Suites

To create a rack series with the rack number, you require:
(n-1) racks without side panels
1 rack with side panels
In a rack suite, per connection you require a set of suite connectors BN 1.130.935.7






Miracel NS19.8 (Width 800mm) with a single-winged glass door Order Number
type nominal depth chassis depth installation height   nominal height weight
  T [mm] t [mm] h [U] h [mm] H [mm] [kg]
with side panels 600 435 23 1052 1320 78 01.135.001.1
37 1652 1920 103 01.135.003.1
41 1852 2120 112 01.135.004.1
46 2052 2320 121 01.135.005.1
800 635 23 1052 1320 80 01.135.019.1
37 1652 1920 111 01.135.021.1
41 1852 2120 120 01.135.022.1
46 2052 2320 129 01.135.023.1
without side panels 600 435 23 1052 1320 70 01.135.007.1
37 1652 1920 95 01.135.009.1
41 1852 2120 103 01.135.010.1
46 2052 2320 112 01.135.011.1
800 635 23 1052 1320 73 01.135.025.1
37 1652 1920 101 01.135.027.1
41 1852 2120 109 01.135.028.1
46 2052 2320 118 01.135.029.1






  Miracel 19" Distribution Rack – Network Rack NS 25

Miracel Network Racks
and Accessories (PDF, 1.0 MB
)

■ installation of chassis runners and 19" shelves possible
■ with fixed 19" built-in unit on the front and rear
■ for built-in units in accordance with IEC 297 3
■ flexible assembly of the built-in units using T slots
■ cable entry via plinth and cover
■ heat loss discharge via ventilation dome
■ door opening angle 180°

Variants
Type 1
■ single rack (with side panels)
Type 2
■ rack for rack suite (without side panels)

For the installation of
■ 19" components on the front and rear
■ equipment with maximum width of 450 mm
■ installation accessories

Jumpering compartment
■ front 123 mm

Load rating
■ 5000 N static

Degree of protection
IP 40 (upgradeble to IP 55)

Tests
■ earthing according to VDE 0100 P 540
■ vibration test according to MIL-STD 810 E
■ IP test according to DIN 40 050 / IEC 529

Material / Finish
■ basis rack, extruded aluminium, polished
■ corner pieces, die-cast aluminium, polished
■ cover zinc-plated sheet steel, powder-coated textured
■ doors, sheet steel, ,powder-coated structure, glass infill front door, single security-glass panel, 4 mm
■ multifunctional members an 19"-extrusions sheet steel, zinc-plated

Colour
Final digit of order number .1:
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7035 light grey
Final digit of order number .8:
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 70321 black grey

Supply schedule
type 1
1 basic unit
4 19" aluminium vertical extrusions with T slot and increment slide for spring nut M5
2 multifunctional frame for cable clamping and universal assembly options
1 cover with ventilation dome and integrated cable entry
1 front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 rear doors, sheet steel, with handle and fixing for locking cylinders
2 side panels with quick locking
1 plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 lateral plinth trim, closed
2 plinth trims for front and rear, with airing vents and fixing for filter mat
1 complete earthing test (VDE 0100)
type 2
1 basic unit
4 19" aluminium vertical extrusions with T slot and increment slide for spring nut M5
2 multifunctional frame for cable clamping and universal assembly options
1 cover with ventilation dome and integrated cable entry
1 front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 rear doors, sheet steel, with handle and fixing for locking cylinders
1 plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 plinth trims for front and rear, with airing vents and fixing for filter mat
1 complete earthing test (VDE 0100)

How supplied
■ assembled

Please note
Rack suites
To create a rack series with the rack number n, you require:
(n-1) racks without sid
e panels
1 rack with side panels
In a rack suite, per connection you require a set of suite connectors BN 01.130.935.7






Miracel NS25 (Width 800mm) Order Number
type nominal depth chassis depth installation height nominal height weight
  T [mm] t [mm] h [U] h [mm] H [mm] [kg]
with side panels 600 365 41 1852 2120 112 01.136.044.1
41 1852 2120 112 01.136.044.8
800 565 41 1852 2120 120 01.136.050.1
41 1852 2120 120 01.136.050.8
46 2052 2320 130 01.136.051.1
46 2052 2320 130 01.136.051.8
900 665 41 1852 2120 124 01.136.056.1
41 1852 2120 124 01.136.056.8
46 2052 2320 134 01.136.057.1
46 2052 2320 134 01.136.057.8
1000 740 41 1852 2120 140 01.127.970.1
41 1852 2120 140 01.127.970.8
without side panels 600 365 41 1852 2120

103

01.136.244.1

800 565 41 1852 2120 109 01.136.250.1
41 1852 2120 109 01.136.250.8
900 665 41 1852 2120 118 01.136.256.1
41 1852 2120 118 01.136.256.8
1000 740 41 1852 2120 128 01.127.975.1
41 1852 2120 128 01.127.975.8




Miracel 19" Network Equipment Rack NG 800



Miracel Network Racks
and Accessories (PDF, 1.0 MB
)


cable entry via plinth and cover
■ heat loss discharge via ventilation dome
■ door opening angle 180°

Variants
Type 1
■ single rack (with side panels)
Type 2
■ rack for rack suite (without side panels)

For the installation of
■ equipment with maximum width of 735 mm
■ shelves
■ installation accessories

Load rating
■ 5000 N static

Degree of protection
Type 1
■ IP 40 (upgradeble to IP 55)

Tests
■ earthing according to VDE 0100 P 540
■ vibration test according to MIL-STD 810 E
■ IP test according to DIN 40 050 / IEC 529

Material / Finish
■ basic rack, extruded aluminium, polished
■ corner pieces, die-cast aluminium, polished
■ covers zinc-plated sheet steel, powder-coated textured
■ doors, sheet steel, powder-coated structure, glass infill front door, single security-glass panel, 4 mm
■ multifunctional members and 19"-extrusions sheet steel, zinc-plated

Colour
■ Door trim RAL 9011 black
■ Visible surface of the cover RAL 7035 light grey

Supply schedule
Type 1
1 basic unit
2 multifunctional frame for cable clamping and universal assembly options
1 cover with ventilation dome and integrated cable entry
1 front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 rear door, single-winged, sheet steel, with handle and fixing for locking cylinders
2 side panels with quick locking
1 plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 lateral plinth trim, closed
2 plinth trims for front and rear, with airing vents and fixing for filter mat
1 complete earthing test (VDE 0100)
Type 2
1 basic unit
2 multifunctional frame for cable clamping and universal assembly options
1 cover with ventilation dome and integrated cable entry
1 front door, single-winged, single security glass panel, with handle and fixing for locking cylinders
1 rear door, single-winged, sheet steel, with handle and fixing for locking cylinders
1 plinth for cable entry on the side and rear with levelling feet (0-25 mm)
2 plinth trims for front and rear, with airing vents and fixing for filter mat
1 complete earthing test (VDE 0100)

How supplied
■ assembled

Rack Suites
To create a rack series with the rack number n, you require:
(n-1) racks without side panels
1 rack with side panels
In a rack suite, per connection you require a set of suite connectors BN 01.130.935.



Miracel NG800 (Width 800mm) with glass door, single-winged Order Number
type nominal depth height weight
  T [mm] t1 [mm] H [U] H [mm] h [mm] [kg]
with side panels 800 730 23 1320 1052 77 01.135.649.1
37 1920 1652 107 01.135.651.1
41 2120 1852 115 01.135.652.1
46 2320 2052 124 01.135.653.1
without side panels 800 730 23 1320 1052 70 01.135.655.1
37 1920 1652 97 01.135.657.1
41 2120 1852 104 01.135.658.1
46 2320 2052 113 01.135.659.1

. standard depths of 3, 4, 5, and 6 inches
5. standard lengths of 10, 12, 20 and 24 feet
Solid Bottom cable tray is generally used for minimal heat generating electrical or telecommunication applications with short to intermediate support spans of 5 feet to 12 feet.

3. Trough Cable Tray provides:
1. Moderate ventilation with added cable support frequency and with the bottom configuration providing cable support every 4 inches. Available in metal and nonmetallic materials.
2. standard widths of 6, 12, 18, 24, 30, 36 inches
3. standard depths of 3, 4, 5, and 6 inches
4. standard lengths of 10, 12, 20 and 24 feet
5. fixed rung spacing of 4 inch on center
Trough cable tray is generally used for moderate heat generating applications with short to intermediate support spans of 5 feet to 12 feet.

4. Channel Cable Tray provides:
1. an economical support for cable drops and branch cable runs from the backbone cable tray system.
2. standard widths of 3, 4, and 6 inches in metal systems and up to 8 inches in nonmetallic systems.
3. standard depths of 1¼-1¾ inches in metal systems and 1, 1 1/8, 1 5/" and 2 3/16 inches in nonmetallic systems
4. standard length of 10, 12, 20 and 24 feet
Channel cable tray is used for installations with limited numbers of tray cable when conduit is undesirable. Support frequency with short to medium support spans of 5 to 10 feet.

5. Wire Mesh Cable Tray provides:
1. A job site, field adaptable support system primarily for low voltage, telecommunication and fiber optic cables. These systems are typically steel wire mesh, zinc plated.
2. standard widths of 2, 4, 6, 8, 12, 16, 18, 20, and 24 inches
3. standard depths of 1, 2, and 4 inches
4. standard length of about 10 feet (118")
Wire Mesh tray is generally used for telecommunication and fiber optic applications and are installed on short support spans, 4 to 8 feet.

6. Single Rail Cable Tray provides:
1. These aluminum systems are the fastest systems to install and provide the maximum freedom fort cable to enter and exit the system.
2. Single hung or wall mounted systems in single or multiple tiers.
3. Standard widths are 6, 9, 12, 18, and 24 inches.
4. Standard depths are 3, 4, and 6 inches.
5. Standard lengths are 10 and 12 feet.
Single Rail Cable Tray is generally used for low voltage and power cables installations where maximum cable freedom, side fill, and speed to install are factors.

What materials / finishes are available for the various cable tray systems?

1. Steel (Min. Yield = 33KSI) (35 KSI for Stainless)
1. Plain: hot rolled pickled and oiled steel per ASTM A569 (Commercial Quality) or A570 (Structural Quality)
2. Pre-Galvanized: mill galvanized steel per ASTM A653 CS (Commercial) or SS (Structural) G90
3. Hot Dip Galvanized After Fabrication: plain steel which is hot dipped after fabrication per ASTM A123.
4. Stainless Steel: type 304 or 316L fully annealed stainless steel

2. Aluminum (Min.Yield = 23 KSI)
1. 6063-T6 or 5052-H32 alloy per ASTM B209

3. Fiber Reinforced Plastic (FRP)
1. Polyester and Vinyl Ester resin systems available
2. meet ASTM E-84 smoke density rating; Polyester 680, Vinyl Ester 1025
3. Class 1 Flame Rating and self-extinguishing requirements of ASTM D-635.

Now that I know what types of cable trays are available, what configurations are available?

1. Straight sections are available to route cables in a horizontal or vertical plane.
2. Fittings are available to route cables in various directions in either the horizontal or vertical planes. Typical examples of fittings include elbows, tees, crosses, and risers. Each of these fittings are available in various radii and bend angles.
3. Covers are accessories and shouldn't be in here unless splices etc. are included.

After selecting the type of cable tray and configuration required, what support methods are available?

1. Trapeze Support (Single or Multi-tier)
2. Hanger rod clamps, "J" hangers
3. Center Hung Support
4. Wall Support
5. Underfloor Support
6. Pipe stanchions or other structures

Each of these support methods are preferable in different applications. For instance, trapeze supports may be desired in an application where cables will be pulled through the cable tray. Center hung supports, on the other hand, are generally used when cables will be installed from the side of the cable tray. Center hung supports are especially useful when future cable additions are desired. Wall supports and underfloor supports are useful when ceiling structure is not available or undesired. Outdoor installations are controlled by the structures available to support the cable tray.
Before selecting the type of cable tray, cable tray configuration(s), and support method desired, what additional information do I need to supply to the cable tray manufacturer for them to best understand and satisfy my needs?

1. Where? Job site and installation considerations
1. Outdoor
1. supports available affect the length and strength requirements
2. environmental loads, ice, wind, snow, and possibly seismic
3. corrosion requirements affect the materials and finishes
4. classified hazardous locations affect the cable types acceptable
2. Indoor
1. support locations available affect the length and strength of the system
2. industrial installation may require a 200 lb. Concentrated Load
3. commercial or institutional installation may make system appearance, system weight, and space available important factors
4. environmental air handling area may affect cable types, cable tray material, or cable tray type and need for covers
5. classified hazardous locations affect the cable types acceptable

2. What?
1. Type and number of cables to support
1. NEC cable fill requirements dictate size, width and depth, of system
2. cable support requirement may control bottom type
3. largest bending radius of cable controls fitting radius
4. total of cable weight determines load to support
2. Future requirements
1. cable entry / exit freedom
2. design partially full or an expandable system
3. support type to allow for needs

B-Line Cable Management Racks

Manage Your Cable While Managing Your Budget.

Now, installers have access to the most feature rich cable management system in the industry...introducing Cooper B-Line's RCM+.  Offering simplified cable management, a more flexible solution for all installations and a reduced total installed cost.  RCM+ has all the configurations you need for your rack supported cable management requirements.

Flexibility -

Need gates on the left, but fingers on the right?  No problem.  How about adding doors on the back?  Again, no problem!  The RCM+ open system design offers countless options and solutions to deal with issues of cable access and cable routing...like those that are created by increasing demands for faster data transmission and higher cable density.  The RCM+ incorporates an innovative modular unit concept with total interchangeability of parts over all units.  All rearrangement and modification of the cable management system is done easily in the field.  Flexibility...based on your application needs now and in the future.

Affordability -

Our RCM+ cable managers offer all the features of higher priced systems, PLUS features that aren't offered on products priced at two, three and four times as much.  Also, because of the way the RCM+ is designed, you will find significant labor savings, dramatically improved cable routing and access options.  All part of a system that can be tailored to almost any need.

Installability -

No matter what your requirement is, RCM+ can be installed in whatever configuration you need, on whatever standard 2-post rack you have or want.  The clean, simply designed appearance blends with the widest range of architecture and environments.  If you require retrofitting a cable manager to an existing rack, or if you are looking to add additional racks and accessories, RCM+ will cure all of your cable management headaches.



Features & Benefits:

360° cable routing... from anywhere, to anywhere, through anywhere.

The open back design permits cable to enter or exit the cable manager at any RMU level, resulting in more direct routing to any point on the rack or an adjacent cable manager. This means less cable density, looser bundling and faster moves, adds and changes. The advantages of the open back design are amplified by the open side feature of double-sided managers.

Efficient, lower cost cable installation.

The 1/4" accessory mounting holes spaced every 1/2 RMU extend along the entire height of the RCM+.  They are an integral component of the open system design. Permitting quick attachment of a wide variety of cable management devices, they are used to support, segregate and route cables going in all directions, whether entering, leaving or passing through the manager.

Assists with data integrity by reducing cable density.

The RCM+ takes full advantage of the cable pass-through openings on the side of the new, deeper racks. The open sides created by spaced-apart mounting, allow cable to pass through the cable manager to an adjacent rack or into either cable manager through the open back.

Compatible with advancements in rack designs and rack supported components.

The RCM+ introduces a new system that consists of cable retention gates that uniquely nest under the two-piece double-hinged doors. When doors are opened, the gates provide containment, but can also be opened from either side or removed as convenience dictates.

The gates can be snapped on at any location and additional gates can be added to the system.

Fast and convenient access with dynamic cable containment.

The system used to mount plastic cable support fingers is common to all cable managers in every series.  Any combination and arrangement of fingers can be installed on the mounting rails. The same universality is applied to the snap on hinges of all doors and gates. This interchangeability allows any RCM+ cable manager to be modified in the field to accommodate a broad range of applications.  This also provides for adaptability to meet any future changes required.

Field modifiable features reduce future costs.

Call (866) 342-3721 Or Click On The Chat Button At The Top Of The Page To Talk To One Of Our Representatives

home | cables | switches | Contact Us our team | locations
