CAT 7 Patch Cords- CAT7 Patch Cords- Molded CAT7 Patch Cords- Molded CAT7 Patch Cords

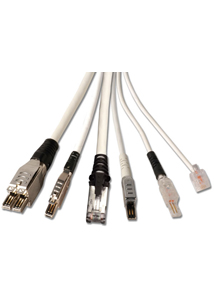

American Data Supply carries the SIEMON TERA CAT 7 patch cords and stocks several lengths of the new CAT 7 Patch Cords and CAT 7 Patch Cables along with our molded- booted CAT 6 Patch Cords and patch cables. Category 7/Class F (ISO/IEC 11801) cable specifications require transmission frequencies of up to 600 MHz over 100 meters of fully shielded copper cabling. CAT7 cable consists of four individually shielded pairs inside an overall braided shield, also known as Shielded Twisted Pair Cable (SSTP), or S/FTP (Shielded Foil Twisted Pair). CAT7 features even more stringent specifications for crosstalk and system noise than CAT6, and is designed specifically for Gigabit Ethernet applications (Gigabit over copper).

Part of the Siemon TERA cabling solution, TERA-to-TERA patch cords deliver twice the bandwidth of category 7A/class FA specifications when combined with the TERA outlet. TERA delivers up to 1.2 GHz of bandwidth per pair, providing the extra bandwidth critical for demanding applications like Broadband Video, with an upper frequency requirement of 862 MHz. Facilitated by 1- and 2-pair patch cords, TERA’s extended performance also supports cable sharing — the simultaneous convergence of video, voice and data onto a single 4-pair cable and outlet.

T1-(XX)M-B(XX)L Category 7A/class FA, 1-pair TERA-to-TERA LS0H cable assembly, grey jacket, colored boot
  • Use 2nd (XX) to specify boot color: 01 = black, 02 = white, 03 = red, 05 = yellow, 06 = blue, 07 = green
  • Note: Field termination of TERA-to-modular plug patch cords is not recommended and is not compliant with Siemon warranty.
T4-(XX)M-B(XX)L Category 7A, 4-pair TERA-to-TERA LS0H cable assembly, ivory jacket, colored boot
  • Use 2nd (XX) to specify boot color: 01 = black, 02 = white, 03 = red, 05 = yellow, 06 = blue, 07 = green
  • Note: Field termination of TERA-to-modular plug patch cords is not recommended and is not compliant with Siemon warranty.
T7P4-B(XX)-1 Category 7A/class FA 4-pair TERA plug with colored boot, compatible with 0.64 - 055mm (22 - 23 AWG) solid S/FTP cable
  • Use 2nd (XX) to specify boot color: 01 = black, 02 = white, 03 = red, 05 = yellow, 06 = blue, 07 = green
  • Note: Field termination of TERA-to-modular plug patch cords is not recommended and is not compliant with Siemon warranty.




Boots match cable color. Custom modular cable assemblies are available
.
Category 7 cable (Cat 7), (ISO/IEC 11801:2002 category 7/class F), is a cable standard for Ethernet and other interconnect technologies that can be made to be backwards compatible with traditional Cat 5 and Cat 6 Ethernet cable. Cat 7 features even more strict specifications for crosstalk and system noise than Cat 6. To achieve this, shielding has been added for individual wire pairs and the cable as a whole.



The Cat 7 cable standard has been created to allow 10 Gigabit Ethernet over 100 m of copper cabling (also, 10-Gbit/s Ethernet now is typically run on Cat 6a). The cable contains four twisted copper wire pairs, just like the earlier standards. Cat 7 can be terminated either with 8P8C compatible GG45 electrical connectors which incorporate the 8P8C standard or with TERA connectors. When combined with GG45 or TERA connectors, Cat 7 cable is rated for transmission frequencies of up to 600 MHz.

Same as Cat6 patch cords, except that are made to a higher standard (see comparison chart below). The Cat7 standard is still in the works (as of this writing) and is not yet part of the 568A standard. One major difference with cat7 patch cables and patch cords (as compared with cat 5, cat5e, and cat6 patch cables) is that all 4 pairs are individually shielded, and an overall shield enwraps all four pairs. Cat7 patch cords will use an entirely new connector (other than the familiar RJ-45 used for cat 5, cat 5e and cat 6 patch cords).

CAT5, CAt5e, CAt6 and CAt7 Patch Cable Performance Specification Chart

Parameter

Cat5 Patch Cables
and Class D
with additional
requirements TSB95
and FDAM 2

Cat5e Patch Cables
('568-A-5)


Cat6 Patch Cables
Class E
(Performance at
250 MHz shown
in parentheses)

Proposed
Cat7 Patch Cables
Class F
(Performance at
600 MHz shown
in parentheses)

Specified frequency range

1-100 MHz

1-100 MHz

1-250 MHz

1-600 MHz

Attenuation

24 dB

24 dB

21.7 dB
(36 dB)

20.8 dB
(54.1 dB)

NEXT

27.1 dB

30.1 dB

39.9 dB
(33.1 dB)

62.1 dB
(51 dB)

Power-sum NEXT

N/A*

27.1 dB

37.1 dB
(30.2 dB)

59.1 dB
(48 dB)

ACR

3.1 dB

6.1 dB

18.2 dB
(-2.9 dB)

41.3 dB
(-3.1 dB)**

Power-sum ACR

N/A

3.1 dB

15.4 dB
(-5.8 dB)

38.3 dB
(-6.1 dB)**

ELFEXT

17 dB
(new requirement)

17.4 dB

23.2 dB
(15.3 dB)

ffs***

Power-sum ELFEXT

14.4 dB
(new requirement)

14.4 dB

20.2 dB
(12.3 dB)

ffs***

Return loss

8 dB*
(new requirement)

10 dB

12 dB
(8 dB)

14.1 dB
(8.7 dB)

Propagation delay

548 nsec

548 nsec

548 nsec
(546 nsec)

504 nsec
(501 nsec)

Delay skew

50 nsec

50 nsec

50 nsec

20 nsec

TERA®-MAX® Adapters for CT Faceplates

TERA® 1200 MHz Cable - International

TERA® 1000 MHz Cable - International

TERA® Patch Cords





Note: Requirements for Category 7 are currently under development.



Shielded CAT6 Patch Cords & CAT 5e Patch Cords from 1 Foot to 200 Feet!

CAT6A- CAT 6 10 Gigabit Cables

CAT 6A Gigabit Shielded Cables

CAT 6 Shielded Crossover Cables

Call Us Before 1PM- and We SHIP the SAME DAY!

Ask For Extreme Discounts On CAT 6 Patch Cords For Quantities of 100- 10,000- 1000.000 Pieces or more!

We Now Offer Outdoor Cat 5e Patch Cords-Cut Custom To Your NeedsPlease See Our Outdoor CAT 5e Cable Specifications-SPECS- Our Outdoor Rated CAT 5e patch cords and Outdoor Patch Cables are pre-cut to a specific length- then terminated on both ends - tested and shipped the same day

We Will Have The Below Cable Availabel Soon!!!!! We Cannot Ship These Yet!

CAT 7 Patch Cords
Color
CAT 6 Molded/Booted Patch Cords
Price EACH
577-100-.5GY
Gray CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1GY
Gray CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1.5GY
Gray CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-002GY
Gray CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-003GY CAT 7 Patch Cords CALL
577-100-004GY CAT 7 Patch Cords CALL
577-100-005GY CAT 7 Patch Cords CALL
577-100-006GY
Gray CAT 6Patch Cords
CAT 7 Patch Cords CALL
577-100-007GY CAT 7 Patch Cords CALL
577-100-010GY CAT 7 Patch Cords CALL
577-100-014GY CAT 7 Patch Cords CALL
577-100-015GY CAT 7 Patch Cords CALL
577-100-020GY
Gray CAT 6Patch Cords
CAT 7 Patch Cords CALL
577-100-025GY CAT 7 Patch Cords CALL
577-100-035GY
Gray CAT 6Patch Cords
CAT 7 Patch Cords CALL
577-100-050GY CAT 7 Patch Cords CALL
577-100-075GY CAT 7 Patch Cords CALL
577-100-100GY CAT 7 Patch Cords CALL
577-100-150GY
Gray CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-200GY
Gray CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-.5BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1.5BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-002BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-003BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-004BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-005BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-006BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-007BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-010BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-014BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-015BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-020BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-025BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-035BL
BLUE CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-050BL
BLUE CAT 6Patch Cords
CAT 7 Patch Cords CALL
577-100-075BL
BLUE CAT 6Patch Cords
CAT 7 Patch Cords CALL
577-100-100BL
BLUE CAT 6Patch Cords
CAT 7 Patch Cords CALL
577-100-150BL
BLUE CAT 6Patch Cords
CAT 7 Patch Cords CALL
577-100-200BL
BLUE CAT 6Patch Cords
CAT 7 Patch Cords CALL
577-100-.5BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1.5BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-002BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-003BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-004BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-005BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-006BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-007BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-010BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-014BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-015BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-020BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-025BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-035BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-050BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-075BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-100BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-150BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-200BK
BLACK CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-.5WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1 WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1.5WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-002WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-003WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-004WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-005WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-006WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-007WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-010WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-014WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-015WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-020WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CAL
577-100-025WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-035WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-050WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-075WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-100WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-150WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-200WH
White CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-.5RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1.5RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-002RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-003RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-004RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-005RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-006RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-007RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-010RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-014RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-015RD
Red CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-020RD
RED CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-025RD
RED CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-035RD
RED CAT 6Patch Cables
CAT 7 Patch Cords CALL
577-100-050RD
RED CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-075RD
RED CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-100RD
RED CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-150RD
RED CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-200RD
RED CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-.5GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-1GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-1.5GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-002GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-003GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-004GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-005GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-006GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-007GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-010GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-014GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-015GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-020GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-025GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-035GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-050GN
Green CAT 6Patch Cables
CAT 7 Patch Cords CALL
577-100-075GN
Green CAT 6Patch Cables
CAT 7 Patch Cords CALL
577-100-100GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-150GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-200GN
Green CAT 6A Patch Cables
CAT 7 Patch Cords CALL
577-100-.5YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1.5YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-002YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CAL
577-100-003YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-004YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-005YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-006YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-007YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-010YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-014YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-015YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-020YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-025YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-035YL
Yellow CAT 6Patch Cords
CAT 7 Patch Cords CALL
577-100-050YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-075YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-100YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-150YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-200YL
Yellow CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-.5OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1.5OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-002OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-003OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-004OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-005OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-006OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-007OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-010OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-014OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-015OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-020OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-025OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-035OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-050OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-075OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-100OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-150OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-200OR
Orange CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-.5PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1.5PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-002PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-003PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-004PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-005PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-006PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-007PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-010PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-014PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-015PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-020PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-025PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-035PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-050PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-075PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-100PL
Purple CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-150PL
Purple CAT 6Patch Cables
CAT 7 Patch Cords CALL
577-100-200PL
Purple CAT 6Patch Cables
CAT 7 Patch Cords CALL
577-100-.5 PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1 PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-1.5 PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-002 PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-003 PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-004- PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-005-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-006 -PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-007-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-010-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-014-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-015-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-020-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-025-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-035-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-050-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-075-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-100-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-150-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CALL
577-100-200-PK
Pink CAT 7 Patch Cords
CAT 7 Patch Cords CAL



Part Number
Outdoor Rated CAT 6 Patch Cords
Color
Price
560-125-010-OSP-C6
10 Foot Outdoor Rated CAT 6patch cords
Black
Call
560-125-015-OSP-C6
15 Foot Outdoor Rated CAT 6patch cords
Black
Call
560-125-020-OSP-C6
20 Foot Outdoor Rated CAT 6patch cords
Black
Call
560-125-025-OSP-C6
25 Foot Outdoor Rated CAT 6patch cords
Black
Call
560-125-030-OSP-C6
30 Foot Outdoor Rated CAT 6patch cords
Black
Call
560-125-035-OSP-C6
35 Foot Outdoor Rated CAT 6patch cords
Black
Call
560-125-040-OSP-C6
40 Foot Outdoor Rated CAT 6patch cords
Black
Call
560-125-045-OSP-C6
45 Foot Outdoor Rated CAT 6patch cords
Black
Call
560-125-050-OSP-C6
50 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-055-OSP-C6
55 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-060-OSP-C6
60 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-065-OSP-C6
65 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-070-OSP-C6
70 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-075-OSP-C6
75 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-080-OSP-C6
80 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-085-OSP-C6
85 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-090-OSP-C6
90 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-095-OSP-C6
95 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-100-OSP-C6
100 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-125-OSP-C6
125 Foot Outdoor Rated CAT 6patch cords
Black
Call
560-125-150-OSP-C6
150 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-175-OSP-C6
175Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-200-OSP-C6
200 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-225-OSP-C6
225 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-250-OSP-C6
250Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-275-OSP-C6
275 Foot Outdoor Rated CAT 6 patch cords
Black
Call
560-125-290-OSP-C6
290 Foot Outdoor Rated CAT 6 patch cords
Black
Call
Custom Lengths-Call
Custom Outdoor Patch Cords- Call
Black
Call

OUTDOOR RATED CAT 5E PATCH CABLES

Outdoor Patch Cords- Outdoor Cable Part Number

PRICE! CAT 5e Outdoor Rated- Direct BuryPatch Cords Description- All Our Outdoor CAT 5e Patch Cords and Outdoor CAT 5e Cables Are Custom Made Daily To Your Specific Requirements Our CUSTOM PATCH CORDS CAN BE MADE IN ANY LENGTH AT A MODEST PRICE- no one else in the USA offers this service! WE STOCK ALL SIZES BELOW

Color
Price- Not Including Shipping
560-125-010-OSP
10 Foot Outdoor Rated CAT 5e patch cords
Black
$ 22.00
560-125-015-OSP
15 Foot Outdoor Rated CAT 5e patch cords
Black
$ 25.00
560-125-025-OSP
25 Foot Outdoor Rated CAT 5e patch cords
Black
$ 27.00
560-125-030-OSP
30 Foot Outdoor Rated CAT 5e patch cords
Black
$ 29.00
560-125-035-OSP
35 Foot Outdoor Rated CAT 5e patch cords
Black
$ 30.00
560-125-040-OSP
40 Foot Outdoor Rated CAT 5e patch cords
Black
$ 35.00
560-125-050-OSP
50 Foot Outdoor Rated CAT 5e patch cords
Black
$ 38.00
560-125-060-OSP
60 Foot Outdoor Rated CAT 5e patch cords
Black
$ 39.00
560-125-070-OSP
70 Foot Outdoor Rated CAT 5e patch cords
Black
$ 43.00
560-125-080-OSP
80 Foot Outdoor Rated CAT 5e patch cords
Black
$ 45.00
560-125-090-OSP
90 Foot Outdoor Rated CAT 5e patch cords
Black
$ 47.00
560-125-100-OSP
100 Foot Outdoor Rated CAT 5e patch cords
Black
$ 48.00
560-125-125-OSP
125 Foot Outdoor Rated CAT 5e patch cords
Black
$ 72.00
560-125-150-OSP
150 Foot Outdoor Rated CAT 5e patch cords
Black
$ 80.00
560-125-175-OSP
175Foot Outdoor Rated CAT 5e patch cords
Black
$ 88.00
560-125-200-OSP
200 Foot Outdoor Rated CAT 5e patch cords
Black
$ 108.00
560-125-225-OSP
225 Foot Outdoor Rated CAT 5e patch cords
Black
$ 118.00
560-125-250-OSP
250Foot Outdoor Rated CAT 5e patch cords
Black
$ 128.00
560-125-275-OSP
275 Foot Outdoor Rated CAT 5e patch cords
Black
$ 138.OO
560-125-300-OSP
300 Foot Outdoor Rated CAT 5e patch cords
Black
$ 150.OO
Custom Lengths-Call
Custom Outdoor Patch Cords- Call
Black
CALL (866) 342-3721

STANDARD CAT 6A Patch Cables

576-110-003
BLUE CAT 6 Patch Cords
CAT 6 Patch Cords $1.70
576-110-005
BLUE CAT 6 Patch Cords
CAT 6 Patch Cords $2.19
576-110-007
BLUE CAT 6 Patch Cords
CAT 6 Patch Cords $2.69
576-110-010
BLUE CAT 6 Patch Cords
CAT 6 Patch Cords $3.39
576-110-014
BLUE CAT 6 Patch Cords
CAT 6 Patch Cords $3.89
576-110-015
BLUE CAT 6 Patch Cords
CAT 6 Patch Cords $3.99
576-110-025
BLUE CAT 6Patch Cords
CAT 6 Patch Cords $6.29
576-110-050
BLUE CAT 6Patch Cords
CAT 6 Patch Cords $7.69
576-110-100
BLUE CAT 6Patch Cords
CAT 6 Patch Cords $12.59

Shielded CAT 6 Patch Cords- Shielded CAT 6 Patch Cords

Part Number

Description- CAT 6 Shielded Patch Cords

Cable Description- We have many colors available

Price
560-110-001-SH-GN Shielded CAT 6 Patch Cord GREEN 1 Ft CAT 6 Shielded Patch Cable Molded
$ 2.28
560-110-002-SH-GN Shielded CAT 6 Patch Cord GREEN 2Ft CAT 6 Shielded Patch Cable Molded
$ 2.38
560-110-003-SH-GN Shielded CAT 6 Patch Cord GREEN 3Ft CAT 6 Shielded Patch Cable Molded
$ 2.48
560-110-005-SH-GN Shielded CAT 6 Patch Cord GREEN 5Ft CAT 6 Shielded Patch Cable Molded
$ 2.98
560-110-007-SH-GN Shielded CAT 6 Patch Cord GREEN 7Ft CAT 6 Shielded Patch Cable Molded
$ 3.48
560-110-010-SH-GN Shielded CAT 6 Patch Cord GREEN 10Ft CAT 6 Shielded Patch Cable Molded
$ 3.98
560-110-015-SH-GN Shielded CAT 6 Patch Cord GREEN 15Ft CAT 6 Shielded Patch Cable Molded
$ 4.98
560-110-025-SH-GN Shielded CAT 6 Patch Cord GREEN 25Ft CAT 6 Shielded Patch Cable Molded
$ 6.48
560-110-050-SH-GN Shielded CAT 6 Patch Cord GREEN 50Ft CAT 6 Shielded Patch Cable Molded
$ 11.48
560-110-075-SH-GN Shielded CAT 6 Patch Cord GREEN 75Ft CAT 6 Shielded Patch Cable Molded
$ 13.88
560-110-100-SH-GN Shielded CAT 6 Patch Cord GREEN 100Ft CAT 6 Shielded Patch Cable Molded
$ 15.48

Shielded CAT 5E Patch Cords- Shielded CAT 5E Patch Cords



Part Number

Description- CAT 5e Shielded Patch Cords

Cable Description

Price
560-110-001-SH-GN Shielded CAT 5e Patch Cord GREEN 1 Ft Cat 5E Shielded Patch Cable Molded
$ 1.88
560-110-002-SH-GN Shielded CAT 5e Patch Cord GREEN 2Ft CAT 5E Shielded Patch Cable Molded
$ 2.28
560-110-003-SH-GN Shielded CAT 5e Patch Cord GREEN 3Ft CAT 5E Shielded Patch Cable Molded
$ 2.98
560-110-005-SH-GN Shielded CAT 5e Patch Cord GREEN 5Ft CAT 5e Shielded Patch Cable Molded
$ 3.88
560-110-007-SH-GN Shielded CAT 5e Patch Cord GREEN 7Ft CAT 5eShielded Patch Cable Molded
$ 3.98
560-110-010-SH-GN Shielded CAT 5e Patch Cord GREEN 10Ft CAT 5e Shielded Patch Cable Molded
$ 4.88
560-110-015-SH-GN Shielded CAT 5e Patch Cord GREEN 15Ft CAT 5e Shielded Patch Cable Molded
$ 5.88
560-110-025-SH-GN Shielded CAT 5e Patch Cord GREEN 25Ft CAT 5e Shielded Patch Cable Molded
$ 7.88
560-110-050-SH-GN Shielded CAT 5e Patch Cord GREEN 50Ft CAT 5e Shielded Patch Cable Molded
$ 12.88
560-110-075-SH-GN Shielded CAT 5e Patch Cord GREEN 75Ft CAT 5e Shielded Patch Cable Molded
$ 15.88
560-110-100-SH-GN Shielded CAT 5e Patch Cord GREEN 100Ft CAT 5e Shielded Patch Cable Molded
$ 28.88

Shielded CAT 6 Patch Cords- Shielded CAT6 Patch Cords

Part Number

Description- CAT 6 Shielded Patch Cords

Cable Description- We have many colors available

Price
560-110-001-SH-GN Shielded CAT 6 Patch Cord GREEN 1 Ft CAT 6 Shielded Patch Cable Molded
$ 2.28
560-110-002-SH-GN Shielded CAT 6 Patch Cord GREEN 2Ft CAT 6 Shielded Patch Cable Molded
$ 2.38
560-110-003-SH-GN Shielded CAT 6 Patch Cord GREEN 3Ft CAT 6 Shielded Patch Cable Molded
$ 2.48
560-110-005-SH-GN Shielded CAT 6 Patch Cord GREEN 5Ft CAT 6 Shielded Patch Cable Molded
$ 2.98
560-110-007-SH-GN Shielded CAT 6 Patch Cord GREEN 7Ft CAT 6 Shielded Patch Cable Molded
$ 3.48
560-110-010-SH-GN Shielded CAT 6 Patch Cord GREEN 10Ft CAT 6 Shielded Patch Cable Molded
$ 3.98
560-110-015-SH-GN Shielded CAT 6 Patch Cord GREEN 15Ft CAT 6 Shielded Patch Cable Molded
$ 4.98
560-110-025-SH-GN Shielded CAT 6 Patch Cord GREEN 25Ft CAT 6 Shielded Patch Cable Molded
$ 6.48
560-110-050-SH-GN Shielded CAT 6 Patch Cord GREEN 50Ft CAT 6 Shielded Patch Cable Molded
$ 11.48
560-110-075-SH-GN Shielded CAT 6 Patch Cord GREEN 75Ft CAT 6 Shielded Patch Cable Molded
$ 13.88
560-110-100-SH-GN Shielded CAT 6 Patch Cord GREEN 100Ft CAT 6 Shielded Patch Cable Molded
$ 15.48



Outdoor Rated CAT 6 Patch Cords-Custom Built

Cat 6 is completely backward-compatible with current Cat5e equipment. Our Cat 6 Cables are composed of 4 pairs 24 AWG stranded conductors with PVC jackets. Conductors are wired to gold plated RJ45 plugs in accordance with the TIA/EIA 568B standard (Telephone Industry Association/Electronics Industry Association.) They consist of a foil shield with drain wire to protect signals from external noise. Available in nine colors. Boots match cable color. Custom modular cable assemblies are available.

Part Number
Outdoor Rated CAT 6 Patch Cords
Color
CALL
560-125-050-OSP-C6
50 Foot Outdoor Rated CAT 6Patch Cables
Black
CALL
560-125-100-OSP-C6
100 Foot Outdoor Rated CAT 6A Patch Cables
Black
CALL
560-125-125-OSP-C6
125 Foot Outdoor Rated CAT 6Patch Cables
Black
CALL
560-125-150-OSP-C6
150 Foot Outdoor Rated CAT 6A Patch Cables
Black
CALL
560-125-175-OSP-C6
175Foot Outdoor Rated CAT 6A Patch Cables
Black
CALL
560-125-200-OSP-C6
200 Foot Outdoor Rated CAT 6A Patch Cables
Black
CALL
560-125-225-OSP-C6
225 Foot Outdoor Rated CAT 6A Patch Cables
Black
CALL
560-125-250-OSP-C6
250Foot Outdoor Rated CAT 6A Patch Cables
Black
CALL
560-125-275-OSP-C6
275 Foot Outdoor Rated CAT 6A Patch Cables
Black
CALL
Custom Lengths-Call
Black
CALL

Sales & Service (866) 650- 3282 Southern CA Office (619)573-4164

Custom Outdoor Rated CAT 6 Patch Cords & CAT 6 Patch Cable

Cat6 cable specifications require stagger terminated wiring, as shown above. Cat 6 Shielded Cable is used in network applications such as 10Base-T, 100Base-T, 1000Base-T Ethernet technology to 100 meters (328 feet), and have been designed specifically for Gigabit Ethernet applications (Gigabit over copper). They perform at high-data transfer rates, and work with ATM and gigabit speed products. These cables deliver improved performance over standard Cat5e cables.

We carry cables from all the manufacturers below









Molded CAT 6 Patch Cords Molded CAT 5e Patch Cords

Yellow-- --White---- -Red---------Blue-------Black----- Green

Ordering Information Below- Available in these colors:







Our CAT 6Patch Cords use compliant stranded wire as specified by the latest published TIA guidelines to ensure adequate 'flex life’ and long term channel integrity. All of our CAT 6 Patch Cords have quality construction to maintain the quality of signal transmission at the cross-connect, which is critical to the performance of the entire cabling systemUse our Patch Cords for all types of networking, voice and even video applications (using baluns). They are approved for use with10Base-T, 100Base-T, 1000Base-T, and Token Ring-type 3. Each one is fully compliant with the Cat. 5e specification and exceeds the requirements of Ethernet IEEE 802.3ab and Token Ring UTP IEEE 205.5, (Category 5e and Category 6) and Patch Cords products including structured cabling products, Smart Home Cable, Smart Home Panels, and CAT 5-6 Testers The combined engineering expertise has produced the industry's preeminent performance in Category 6 cabling systemsOur Cat 6 gigabit Patch Cords deliver channel performance that exceeds all proposed current TIA/EIA and ISO/IEC Class E Category 6 channel requirements.
Best of all, the results are supported through our Gigabit Patch Cable LifeTime Warranty, which provides you with the industry's most advanced coverage. Our Gigabit CAT 6A Patch Cables are backward compatible with components and systems of lower performing categories.
Features:
• Our Cat 6 Patch Cords exceptional bandwidth capabilities may allow Gigabit Ethernet operation without complex DSP (Digital Signal Processing) electronics required for Category 5e
• Increased usable bandwidth
• Optimized ACR
• Optimally tuned performance
• Components meet all current
• Category 6 draft requirements
Benefits:
• Improved network performance and reliability
• Lower ownership costs
• Supports applications beyond Gigabit Ethernet (future-proof)
• Provides additional margin for external noise cancellation
• Error-free data transmission
• Exclusive warranty coverage

We also custom manufacture the following custom patch cables:

  • 4 Pair UTP Stranded Cables-Gigabit Ethernet cableGigabit Patch Cables110 Block 110 Type Patch Cords50/125 Fiber Optic Cables 62.5/125 Fiber Optic Cables BNC to BNCCategory 3 Patch CablesCategory 4Category 5, Category 5E, Cat 5, cat 5e Category 5E Crossover Category 5E Shielded Category 5E Value-Packs Category 6, Cat 6 Category 6 CrossoverCategory 6e, Cat 6e Patch CablesCategory 7, Cat 7Two-Pair Telco Patch CablesTelco CablesTelco 50, Telco64E1/T1 patch cablesE3/T3 Patch Cords
  • Telphone Token Ring Transceiver RJ45 to RJ45 - wired to your specifications 110 Style Patch Cables, custom manufactured
  • Modular Products wired to your specifications
  • Patch cableDS0, DS1, DS3, DS4 cables Fiber Jumpers,Mode Conditioning Fiber Optic jumper cable, Modular/Telephone cables

Patch cables are available in any combination. All cables are 100% tested. Same day service for rush orders available. Please contact us to inquire about all your cable needs!

CATV Patch Cords

The LAST 3 DIGITS of the part number represents LENGTH in FEET-For Example:

Part Number 560-100-003 is a 3- Foot Patch Cords

The LAST 3 DIGITS of the part number in the chart below represents LENGTH in FEET-For Example: Part Number 560-100-003 is a 3- Foot Patch Cords



CAT 6 Cable Specifications Click Here

CAT6 Bulk Cable

Type Part Number Description
CAT6 K6-1KSTP-BL CAT6 550MHz Cable, 24AWG, STP, 4 Pairs, 1000', Blue
CAT6 Plenum K6-1KUTP-PLEN-BK CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Black
CAT6 Plenum K6-1KUTP-PLEN-BL CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Blue
CAT6 Plenum K6-1KUTP-PLEN-GR CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Green
CAT6 Plenum K6-1KUTP-PLEN-GY CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Gray
CAT6 Plenum K6-1KUTP-PLEN-RD CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', Red
CAT6 Plenum K6-1KUTP-PLEN-WH CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, Plenum, 1000', White
CAT6 Cable K6-1KUTP-BL CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', Blue
CAT6 Cable K6-1KUTP-WH CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', White
CAT6 Cable K6-1KUTP-RD CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', Red
CAT6 Cable K6-1KUTP-GR CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', Green
CAT6 Cable K6-1KUTP-GY CAT-6 550MHzCable, 23AWG, UTP, 4 Pairs, Solid, 1000', Gray
CAT6 Cable K6-1KUTP-YL CAT-6 550MHz Cable, 23AWG, UTP, 4 Pairs, Solid, 1000', Yellow
CAT6 Cable K6-1KUTP-BL/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Blue
CAT6 Cable K6-1KUTP-GY/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Gray
CAT6 Cable K6-1KUTP-RD/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Red
CAT6 Cable K6-1KUTP-GR/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Green
CAT6 Cable K6-1KUTP-WH/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', White
CAT6 Cable K6-1KUTP-YL/ST CAT-6 550MHz Cable, 24AWG, UTP, 4 Pairs, Stranded, 1000', Yellow






Toll Free (866) 342-3721 West Coast (866) 650-3282 East Coast
Call For Pricing- (866) FIBER-21 or (866) 342-3721

Home | Cables | Switches | Contact Us | Our Team | Locations















Related Items

TERA S/FTP Trunking Cable Assemblies
TERA®-MAX® Adapters for CT Faceplates
TERA®-MAX® Angled Faceplate Adapter
TERA-MAX Patch Panels
TERA® 1000 MHz Cable - International
TERA® 1000 MHz Cable - US
TERA® 1200 MHz Cable - International
TERA® 600 MHz F/FTP Cable - International
TERA® Patch Cords
TERA® Video Patch Cord
TERA® 4-Pair Outlet
TERA® Cable Preparation Tool





CAT 7- 10 Gigibit Patch Cables

CAT 7- 10 Gigibit Patch Cords

CAT 6A- 10 Gigibit Patch Cables- More Info

SHIELDED CAT 6A- 10 Gigabit Patch Cables



CAT 6 Patch Cords

CAT 5e Patch Cords



Gigabit Fiber Patch Cords

Gigabit Shielded Patch Cords

CAT 6 Patch Panels

CAT 6 SHIELDED Patch Panels

CAT 5E Patch Panels
