Field Termination Kits-UPC Field Termination Kit- APC Field Termination Kits

.

American Data Supply caries the NOS EZFieldMate™ Field Termination Kit offers a simple, efficient, and cost-effective process for field connectorization of single mode or multi-mode fiber optic cable at the tightest factory specifications. Minimal training is required for installers and technicians to become proficient and certified. The kit includes all tools, parts and instructions needed to complete the termination of fibers in the field, which are compliant with GR-326-CORE & Telcordia GR-1081-CORE requirements.

NOS can customize the kits to contain various connector types/polishes to meet customer needsNOS EZFieldMate™ connector kits are to be used in conjunction with the EZFieldMate™ Field Termination Kit to provide simple, efficient, and cost-effective field terminations of single mode and multi-mode fiber optic cable with the tightest factory specifications. Minimal training is required for installers and technicians to become proficient and certified. The EZFieldMate™ Connector Kit includes all consumables required to complete the termination of fibers in the field, which are compliant with GR-326-CORE & Telcordia GR-1081-CORE requirements. NOS can customize the kits to contain various connector types/polishes to meet customer needs...

KleenCore Replacement Reels-Part #NOSCLERR-0000087075

For Additional Info on KleenCore Replacement ReelsClick

Fiber Swiper -PID FIBERSWIPER-0000087076

For Additional Info on FIBERSWIPERClick

* Pocket-sized connector cleaner (same thickness as a CD jewel case) 111(L) x 57(W) x 10.2(H) mm.
* ESD-dissipative material is used in the fabrication of the FiberSwiper® to eliminate static for use in sensitive areas.
* Each FiberSwiper® holds 6 cards that clean 13 connectors each (78 cleans/6-pack).
* A perforated cover protects each cleaning slot until used.
* Removes and retains oil, dirt and other contaminants without solvents for superior results over competing products.
* One swipe cleaning requirement per connector end for a more cost effective solution.
* Easily fits with product related literature/CD’s in a packet shipped with product for customers to use before installation, thus reducing and controlling dirty connector related RMA’s and customer complaints.

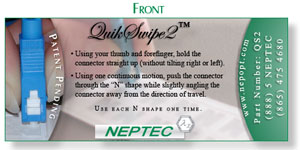

* NOS has introduced single QuikSwipe™ cleaning cards using the same KleanCore™ cleaning fabric used in the KleanCore™ replacement reels and FiberSwiper®. Designed for inclusion in applications where a limited amount of cleans are required. (i.e. shipping transceivers etc.). QuikSwipe™ cards provide one-swipe cleaning.
* Private Label orders are welcome.

0.25“ spacing to support all duplex connector cleaning requirements.

Proper care and cleaning of fiber connectors cannot be stressed enough especially when working with systems that are carrying 10 Gbps or more on each wavelength.  Fiber connector cleaning is often ignored by the engineering and installation personnel in spite of the severity of dirty connectors. Neptec Optical Solutions worked with many OEMs and service providers and found that over 35% of the equipment returns (RMAs) are due to dirty fiber connectors. In order to meet the diverse needs of the fiber optics industry, NOS developed several cleaning products:

The FiberSwiper® offers a compact ESD-dissipative case for storage and use of six cards, each containing 13 individual slots for cleaning. FiberSwiper® was developed to minimize RMAs for the system vendors. OEMs can now conveniently include a FiberSwiper® with every unit shipped. The standard FiberSwiper® cleans 78 connectors. It is also a convenient item for the field service personnel in the service provider sector.





Sprint PID's

1*Reel Cleaner Cassette P/N NOSKCRC-0000087073
2* KleanCore Reel P/N NOSFCRR-0000087074
3* FiberSwiper PN FIBERSWIPER-0000087076
4* Keancore Cletop Replacement Reel-P/N NOSCLERR-0000087075
5* Fiberswiper Replacement Cards-P/N-FIBERSWIPER-RC6-0000087077
6* EZ Field Termination Kit -P/N EZFK-KITSC-0000097951
7* SC/UPC EZFM Connector Kit P/N EZFM-R50SCUKIT-0000097953
8* SC/APC EZFM Connector Kit P/N EZFM-R50SCAKIT-0000097952



SBC PID's



FIBERSWIPER 400166898

FIBERSWIPER Replacement Cards 400166898



Lowest Priced Corning- Emerson-Aloca Fiber Cable-Jumpers in the USA!
Additional Links ------

We’re here to help you solve your business challenges and increase your ability to meet your own customers’ growing expectations from their telecommunications service providers.

ATS-EZFM KIT $2800.00



Key Features

* Portable, self-contained kit
* Provides factory quality terminations under most any field conditions in 10 minutes
* GR-1081 and GR-326 Compliant - Report Available
* Cost-effective termination of fiber anywhere
* Low-loss, high quality terminations
* Kit includes all parts/tools/instructions needed
* Kit includes internal power source (12vDC)
* Minimal training to achieve technician certification
* Utilizes industry standard parts/tools
* EZFieldMate™ Connector Kits support both large and small form factor connectors.
* Full line of optional accessories: Various adapter tips, and 3.5" TFT color LCD

Applications

* CATV/Broadband communications
* Homeland security
* Military and defense systems
* FTTH, FTTP, FTTC; FTTx
* Telco (IXC, ILEC, CLEC)
* Enterprise LAN / WAN
* Fiber restoration
* Fiber monitoring
* Aerospace

Summary of GR-1081-CORE Criteria:

The tools, supplies, and materials for installing 50 connectors should fit in a single carrying case. (O3-1)

The carrying case shall protect the contents during transportation. (R3-2)

The carrying case shall provide internal organization for the materials and shall be suitable for carrying from one job to another. (R3-3)

Each carrying case shall have one or more handles and shall be convenient to carry with one hand. (R3-4)

The maximum weight of each case shall be 18kg (40lb). (R3-5)

The carrying case shall be marked on the outside with a title that describes the product. The vintage of all parts shall be traceable to within 3 months of the data of manufacture and may be marked either on the inside or the outside of the kit. (R3-6)

A portable work surface, if required for the field mounting of connectors, shall be available from the manufacturer, and shall meet requirements R3-4 and R3-5. (R3-7)
