Telco T- 4 Routing Switch- Routing switches- Multilayer Telco Systems Switches- Nebs Compliant Switches- 10/100/1000 Nebs Compliant Switches

"The results show that Telco Systems' T5 Compact outperforms Cisco's Catalyst 2950G-48 convincingly in every test performed"- Click Here

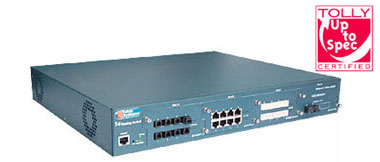

American Data Supply T4 Routing Switch deliver high-performance switching and multi-layer services for today’s enterprise and carrier environments. T4 Routing Switch's modular architecture allows for 32 Fast Ethernet or 4 Gigabit Ethernet ports. Their unique wire-speed policy-based switching technology provides Quality of Service (QoS) for demanding applications.

Compact, modular, stackable routing switches

Up to 96 Fast Ethernet or 12 Gigabit Ethernet ports
Ideal high-performance switching and multi-layer service solution for enterprise and carriers
Stackable systems for ease of management
Wide variety of fiber interfaces available, eliminating the need for media converters



Product Quick Find Access Access201 Access211 Access60/Access45 Access600 HDI Battery Backup DCB-24 EdgeGate CPE GW-23 Series EdgeGate CPE GW-23 Series EdgeGate CPE GW-28 Series EdgeLink200 Channel Banks EdgeLink200 Integrated Access EdgeLink200 Multiplexers EdgeLink200 Multi-Service Access EdgeLink300 EdgeLink410 EdgeLink810 EdgeLink-T1/E1-E/O Access Route-24 Transport Battery Backup EdgeLink Hub EdgeLink OTM1000 EdgeLink OTM1000 EdgeLink VDSL System EdgeLink100 EdgeLink100XT EdgeLink100XT Fiber Transport EdgeLinkSTS/T1 EdgeLink-T1/E1-E/O Transport EdgeLink-T3-E/O EdgeLink-T3-E/O Fiber Transport Multi-Service Distribution Hub IP Switching Management Tools T2M T4 Routing Switch T5 T5 Compact 24F T5 Compact 24G T5 Compact 24GT T5 Compact 24T/48T T5 Compact Switch T5 Compact TID T5 Routing Switch T5G T5Pro T6 T6Pro T-Enterprise Switches Family - TE24 T-Enterprise Switches Family - 12G/GT T-Optics - Optical Plug-in Transceivers

Part Number Description
BTI-0430-L3 Basic switch platform with four free slots +AC power supply
BTI-0430DC-L3 Basic switch platform with four free slots + -48VDC power supply
BTI-0430DC-R-L3 Basic switch platform with four free slots + two -48VDC power supplies (redundant)

100 Mbps Modules
Part Number Description Connector Distance

BTI-2SC-EX-L3 2 ports 100BaseFX interface module 1310nm Dual SC 40 km
BTI-2SC-LD-L3 2 ports 100BaseFX interface module 1310nm Dual SC 14 km
BTI-4SC-EX-L3 4 ports 100BaseFX interface module 1310nm Dual SC 40 km
BTI-4SC-LD-L3 4 ports 100BaseFX interface module 1310nm Dual SC 14 km
BTI-8LC-EX-L3 8 ports 100BaseFX interface module 1310nm Dual SC 40 km
BTI-8LC-LD-L3 8 ports 100BaseFX interface module 1310nm LC 14 km
BTI-8MT-L3 8 ports 100BaseFX interface module 1310nm MT-RJ 2 km
BTI-8TX-L3 8 ports 10/100BaseT/TX interface module
BTI-8VF-L3 8 ports 100BaseFX interface module 1310nm VF-45 2 km

1000 Mbps Modules
Part Number Description

BTI-1GBIC-L3 1 port 1000BaseX unpopulated GBIC module
BTI-1GLX-EX-L3 1 port 1000BaseFX Single Mode (1310nm)
BTI-1GLX-LD-L3 1 port 1000BaseLX Single Mode (1310nm)
BTI-1GLX-SE-L3 1 port 1000BaseLX single mode (1550nm)
BTI-1GSX-LC-L3 1 port 1000BaseSX Multi Mode (850nm)
BTI-1GSX-MT-L3 1 port 1000BaseSX Multi Mode (850nm)
BTI-1GT-L3 1 port 10/100/1000BaseT interface module

Stacking
Part Number Description

BTI-XTND-A Stacking Module for T4 Routing switch ( 2.4 Gbps Bandwidth)
BTI-XTNC-A Stacking Cable for T4 Routing switch
BTI-XTND-KIT-A 2 Stacking Modules for T4 Routing switch with one stacking cable. ( 2.4 Gbps Bandwidth).

Software
Part Number Description

BiNOSCenter Elements Management System for networks
BiNOS-Adv BiNOS + OSPF, multicast routing, and DiffServ
BiNOS-Pro BiNOS + Traffic Shaping
BTIVIEW-OVW SNMP GUI for HP Open View management software for Windows NT
BATVIEW-SUN SNMP GUI for HP OpenView management software for Sun Systems
BATVIEW-WIN SNMP GUI for Castle Rock SNMPc management software

Accessories
Part Number Description
BTI-BLNK Blank plate interface module

Based in Foxboro, Massachusetts, Telco Systems is committed to leading the industry in the development of transport, access, and packet products for carriers' COs, Co-Los, and POPs, as well, enterprise solutions for FTTH, SOHO, hospitality, education, and MTU/MDU. Integrating circuit- and packet-switched technologies onto flexible platforms ensures cost-effective operation
