Layer 2 Enterprise Switch-Layer 2 10/100/1000 Ethernet SNMP Managed Switch- Edge Switch-Data Center Switches

Enterprise 24 10/100BaseTX plus 4 shared Gigabit Ethernet uplinks,
SNMP managed and stackable switch

Enterprise 12 Gigabit Ethernet plus 4 shared Gigabit Ethernet uplinks, SNMP
managed and stackable switch

Telco Systems’ TE 12G and TE 12GT new generation Layer 2 10/100/1000 Ethernet SNMP-managed and stackable switches are designed to meet growing demands for better QoS and enhanced security at the increasingly intelligent network edge.
The TE 12G has 12 Gigabit Ethernet unpopulated miniGBIC (SFP) ports and 4 Gigabit Ethernet fixed 10/100/1000BaseT shared ports.
The TE 12GT has 12 Gigabit Ethernet fixed 10/100/1000BaseT ports and 4 Gigabit Ethernet unpopulated miniGBIC (SFP) shared ports.

Enterprise 12 Gigabit Ethernet plus 4 shared Gigabit Ethernet uplinks, SNMP
managed and stackable switch

Telco Systems’ TE 12G and TE 12GT new generation Layer 2 10/100/1000 Ethernet SNMP-managed and stackable switches are designed to meet growing demands for better QoS and enhanced security at the increasingly intelligent network edge.
The TE 12G has 12 Gigabit Ethernet unpopulated miniGBIC (SFP) ports and 4 Gigabit Ethernet fixed 10/100/1000BaseT shared ports.
The TE 12GT has 12 Gigabit Ethernet fixed 10/100/1000BaseT ports and 4 Gigabit Ethernet unpopulated miniGBIC (SFP) shared ports.

Flexibility and Reliability
If more Gigabit Ethernet ports are needed, just add another TE 12G/12GT to the stack and the switchgroup will look and feel as if they are one. Plug-in optical transceivers provide any-optics-type flexibility with all available standard SFP’s. Telco Systems optical transceivers include SX, LX, ZX, TX, CWDM and Bi-Directional miniGBIC types. Both the TE 12G and the TE 12GT support a redundant power supply feature. By adding a DC RPS unit, reliability and redundancy improvements are guaranteed.

Manageability
Management access via the Web or Telnet CLI, give network managers simple and comprehensive means to implement network policy. The T-Enterprise switch’s console port allows administrators easy and efficient network monitoring, management and configuration.

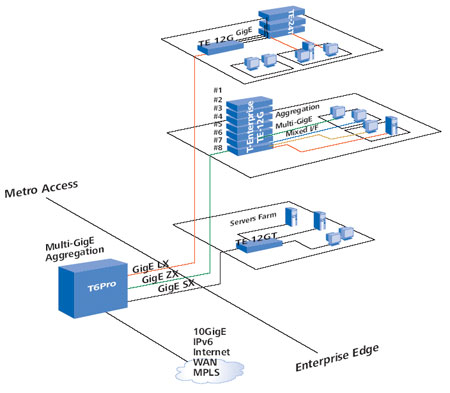

Applications
The T-Enterprise 12G series is targeted at the Edge Aggregation arena, providing aggregation services over Gigabit Ethernet uplinks for SME (small-to-medium enterprise) operations. The Edge arena (in the wiring-closet, when connected in groups) is the intermediate layer before the service provider Metro Access layer. The T-Enterprise 12G switches connect the access layer directly to edge access nodes such as the TE24. T-Enterprise functionality is crucial for offloading the backbone layer burden, since
these switches can perform even the most complex service provider tasks.
TE 12GT can be used in a server farm, since it supports multiple copper Gigabit Ethernet ports that can be directly connected to servers. When additional optical ports are needed in order to span longer distances, the TE 12G is the right choice. Up to 12 optical ports, that can be fitted with a wide variety of optical transceiver types, make it an optimal mid-range aggregation platform.

Stacking
The TE 12G/12GT supports stacking features that let you manage up to 8 switches as one unit, using a single IP address. Stacking provides the operator with a scalability option - where switches can be added to the stack as port count requirements increase. The stacking feature dramatically simplifies maintenance and control procedures, since the stack, regardless of the number of switches, is treated as a single entity.

Benefits & Features

Targeted at Edge Aggregation applications for SMEs
Stacking support (Single-IP management) for up to 8 units
Maximum flexibility with plugin, hot-swap optical transceivers for SX, LX, ZX, CWDM and Bi-Directional miniGBIC types.
Access Control List (ACL) and Rate Limiting capabilities
Enhanced QoS with 8 queues per port, WFQ and SP support
Wire-speed performance with 24Gbps non-blocking switch fabric
Forwarding rate of 17.8MPPS
Multicast support with IGMP Snooping
16K MAC addresses entries
Jumbo 64-9K bytes frame size support
Complete Management options with:
•SNMPv1/v2c/v3*
•Telnet CLI
•Web-based management
•On-board console port
•Out-of-band management port Advanced features list including
•802.1w RSTP on each port
•802.1x port authentication
•802.3ad and LACP support
•per-port port mirroring
•256 static VLANs, 4K Dynamic VLANs
•Broadcast Storm Control
•DHCP Client
Better reliability with DC RPS support
FCC and CE certified
