Fiber
Optic Modems- T1/E1 Fiber Optic Modems, T3/E3 Fiber Optic Modems-iIber Modem-Fiber Optic Transceivers-
Fiber Optic Media Converters- Fiber Optic Telephone Extenders-Call Tollfree (866) 342-3721 or click on the live support button below to talk to us
Call for latest pricing (866) 342-3721
These
fiber optic modems are ideal for distances of approximately 5 km
multimode and 30 km single mode. Distance capacity for these fiber
optic modems can vary depending on the size and type of fiber optic
cable, number of connections and type of fiber optic connectivity
device(s) used in a given network.
Fiber
Optic Modems Overview
American
Data Supply carries a complete line of fiber optic modems include Asynchronous,
Synchronous, T1/E1 and T3/E3 Fiber Optic Modems. Our fiber optic modems provide
efficient, affordable solutions to a variety of network connectivity problems.Fiber
Optic Modems are available in both multimode and single mode. Configurations include
point-to-point, multi-drop, ring, self-healing ring and bus. Data rates vary from
300 bps to 2.5Mbps. Bit error rates are 1 in 10-10 or better.All popular electrical
interfaces are supported including RS-232, RS-422, RS-366, RS-485, RS-530, TTL,
T1, E1, T3, E3 and V.35. DB-25 (female) and detachable terminal block connectors
are standard. Model TC1630R T1/E1, TC1680 T3/E3 and TC1710 High Speed modems are
available either rackmount, wallmount or standalone.
The TC1900 is often used
to extend telephone service in campus networks, power plants, substations,
etc or use an existing service data channel to set up a telephone
link. It is also used to set up "Hot Links" telephone
service via existing RS-232 links on satellite, fiber optic or microwave
networks. Standard fiber optic connectors are ST; FC is optional.
Power is 9-12VDC, 24VDC, -48VDC or 115/230VAC with an external power
cube.
* Async Data Rates Up to 64Kbps
* Sync Data Rates Up to
128Kbps
* Selectable Internal Clock
* Multimode or Single Mode (850/1300/1550nm)
* Multiple Troubleshooting LEDs
* Sturdy Compact Metal Case
* High Temperature
(-20°C to 70°C) Version Optional

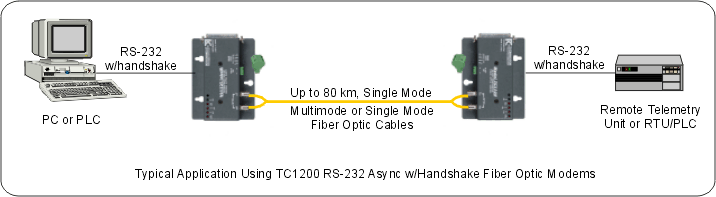

RS-232
Async Fiber Modem w/Handshaking
Model TC1200) Prices Start at $438.00 ea.
* Async Data Rates Up to 128 Kbps
* 3 Independent Channels
(or 1 Ch. w/Handshaking)
* 5 Control Signals (RTS, CTS, DTR, DSR & CD)
* Multimode or Single Mode (850/1300/1550nm)
* Multiple Diagnostic LEDs
* Local & Remote Loopback Functions
* Sturdy Compact Metal Case
*
High Temperature (-20°C to 70°C) Version Optional
* Async Speeds up to 56 Kbps
* Supports all 11 Control Signals
* Multimode or Single Mode (850/1300/1550nm)
* 6 Status LEDs
* Sturdy
Compact Metal Case
* Hardened Temperature (optional)
Sync
Data Rates Up to 2.048 Mbps
Distances up to 20km
Multimode or Single
Mode (850/1300/1500nm)
DTE/DCE Selectable
Six Diagnostic LEDs
Slave
Clock
Local & Remote Loopback Functions
High Temperature (-20°C
to 70°C) Version Optional
