American Owned and Operated

American Data Supply carries a complete line of fiber optic multiplexers from several different manufacturers. General products include Fiber Optic Modems , Multiplexers, Fiber Optic Data/Telephone Multiplexers; Fiber Ethernet Switches, Transceivers & Media Converters and Ethernet/Fiber/RS-232 Telephone Extenders. Specialty products include Industrial-Hardened Ethernet and Multi-Drop Fiber Modems & Multiplexers for SCADA, Traffic Control, Security & Process Control applications. Fiber Optic Modems are often used to link various process control systems in manufacturing plants, refineries, etc.


8/16 Channel Multi-Interface Fiber Optic Multiplexer
(Model TC8116) Prices Start at $785.00 ea.

Mix or Match Field-Interchangeable Interfaces: RS-232, RS422, RS-485, TTL, Analog/Intercom & Dry Contact Relays
Data Rates up to 56 Kbps*
* 8 or 16 Channels
Built-In Power Redundancy
Optional Optical Redundancy
Local Dry Contact Relay
Built-In Test Signal Generator
Local & Remote Loopback Features
Multimode or Single Mode (850/1300/1550nm)
Rackmount or Standalone
Extend telephone lines with TC1900 RS-232 or Fiber Telephone Extenders

Applications

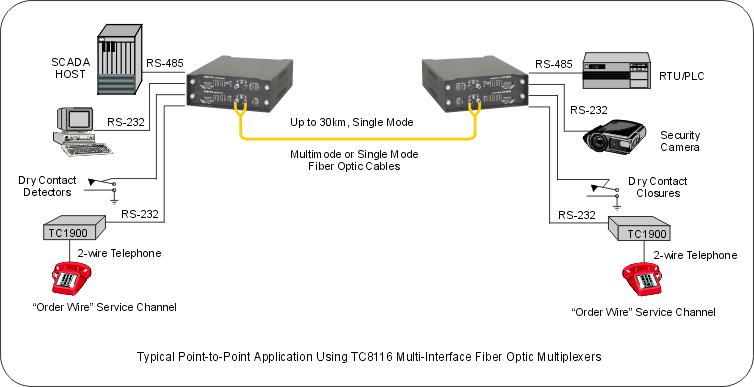

The TC8116 Fiber Optic Multiplexer provides a flexible, inexpensive method for connecting async/sync terminals, printers, and status collecting devices. It is often used in harsh environments where EMI/RFI interference, ground loops and lightning conditions may exist. The TC8116 can also be used to extend telephone lines to remote locations with the Model TC1900 RS-232 or Fiber Telephone Extenders.

Description

The TC8116 is an 8 or 16-channel fiber optic multiplexer with interchangeable interfaces and built-in power redundancy. Optical redundancy is optional. It supports data rates up to 56Kbps*. The TC8116 is available in four configurations:

8 Channel Async with No Control/Handshaking- 8 Channel Sync or Async with Control/Handshaking
16 Channel Async with No Control/Handshaking-6 Channel Sync or Async with Control/Handshaking

Standard interfaces include RS-232, RS-422, RS-485 (2 or 4 wire), TTL & Dry Contact Closure. Synchronous versions must be RS-232. Electrical interfaces are modular and interchangeable in 4-channel increments at any time--before or after installation. Because different interfaces can be mixed in 4-Channel increments, a wide variety of interface combinations are available.



T1/E1 1-4 Channel Fiber Optic Multiplexer
(Model TC8300) Prices Start at $1,567.00 ea.

1 to 4 Channels of T1/E1 or Combo
Multimode or Single Mode (850/1300/1550nm)
Distances to more than 100km
Up to 8 Extra Data Channels
Replaceable Line Interface Module
Built-in Power Redundancy
Optional Optical Redundancy- No Jitter
Supports AMI/B8ZS/HDB3 Line Codes
Individual Local & Remote Loopback
6 Troubleshooting LEDs per Channel
12VDC Standard Power Supply
Optional 24VDC, -48VDC or 115/230VAC Power
Rackmount or Standalone


Applications

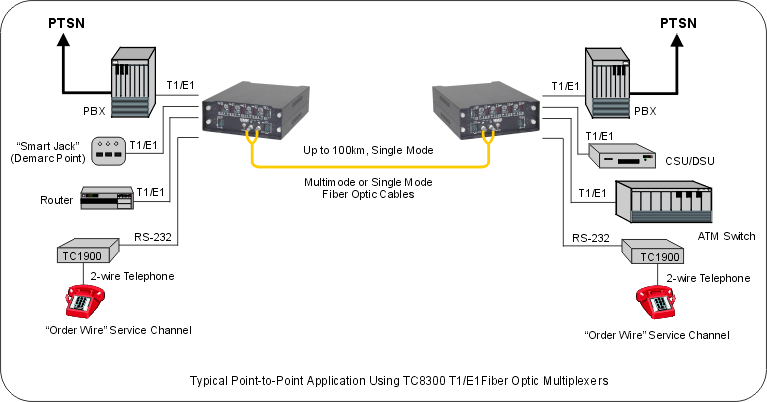

The TC8300 is a remarkably flexible one-to-four channel T1/E1 Fiber Optic Multiplexer that is frequently used to link PBXs, Channel Banks, Customer Premise Equipment and M13 Muxes to DSX-1 Cross Connects.

Description

The TC8300 is a 1 to 4 channel T1/E1 Fiber Optic Multiplexer that offers several advanced features including extensive diagnostics, extra data channels, management software, power and optical redundancy, jitter removal and a replaceable Line Interface module. It is available both multimode and single mode and is compatible with all popular types and sizes of optic cable. The standard loss budget is 15dB, higher budgets are optional. Distances to more than 100km are possible with the single mode 1550nm option (34dB loss budget).

Diagnostics are extensive. Each channel offers six LED indicators to ease installation and troubleshooting - one each for RxD, Alarm, T1/E1 Signal Loss, BPV violations, Remote Loopback and Remote Signal Loss. Individual channels provide 4 DIP switches, accessible from the front panel, to control settings for line code, line length, local Loopback or remote Loopback. Dry contacts are also provided.

The extra out-of-band data channels are intended for multi-purpose communications. Up to eight RS-232 channels are available in addition to the T1/E1 channels. The out-of-band RS-232 channels can be used for telephone service with the Model TC1900 "Quick-Talk" Phone Extender.

Power redundancy is standard; optical redundancy is optional. Both provide automatic switchover in the event of failure. The TC8300 is transparent to the framing format and supports all applicable standards and line codes including CCITT G.703 and AMI/B8ZS/HDB3 Line Codes. Line distances from 0 to 655 feet (for connecting to DSX-1 cross connects) are supported. Jitter is eliminated because of a built-in elastic buffer and jitter attenuator.

TC8300S is the Standalone/Wallmount Unit. The TC8300R is the PC Card version that fits into TCRM191 or TCRM195 19" Rackmount Card Cages. Fiber optic connectors are ST or FC. Input power is 12VDC (standard); optional 24VDC, -48VDC, or 115/230VAC with a built-in or external power supply. Special four-position and two-position feed-thru detachable terminals are provided for connecting the T1/E1 twisted pairs. An extreme temperature version (-20ºC to 70ºC), Model TC8300T, is also available.



4-28 Channel Telephone/Data Fiber Optic Multiplexer
(TC8800 Series) Prices Start at $1,680.00 ea.

Extend Up to 28 Telephone Lines and/or RS-232, RS-422, TTL, Dry Contact Closure, Dry Contact Detector
2-Wire Analog PBX and Key System Compatible
Multimode or Single Mode (850/1300/1550nm)
Built-In Power Redundancy
Optical Redundancy (Optional)
Hardened Temperature Version (Optional)
Standalone or Hot Swappable Rackmount C

Applications

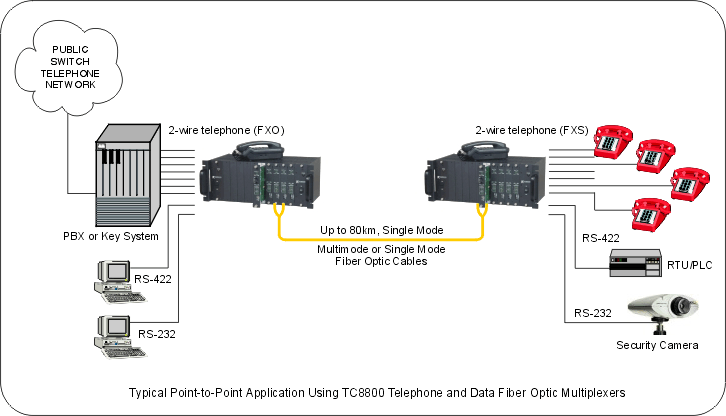

The TC8800 is typically used to link or extend data and telephone lines in campus networks. In many instances the TC8800 can replace expensive channel banks.

Description

The TC8800 is a 4-to-28 channel telephone and data fiber optic multiplexer that extends multiple telephone lines and data channels to remote sites such as other buildings in campus networks. The TC8800 Series consists of TC8800 (FXS), TC8801 (FXO), and TC8802 (Data). Users can mix or match telephone channels or RS-232, RS-422, TTL and Dry Contact Interfaces in increments of four up to a maximum of 28 channels. For example, a user could multiplex 20 telephone channels and 8 RS-232 data channels.

The TC8800 Series converts 2-wire FXS to fiber optics on the telephone side with ring down capability and FXO on the PBX side. Distances up to 80km are typical over single mode fiber, 4km over multimode fiber. Because the TC8800 digitizes the analog signals (PCM), voice quality does not degrade over extended distances.

It supports Telephone channels from 300Hz to 3.4Khz and asynchronous data rates to 19.2 Kbps. Twelve LEDs are available for status monitoring and diagnostics. A dry contact alarm is optional. Diagnostic LEDs for each channel include Tx, Rx, Hook and Ring.

The TC8800R PC Card version requires the TCRM191 or TCRM195 19" Rackmount Card Cage. Each TC8800R card can be removed or installed on the TCRM191 without powering down the system ("hot-swappable"). The TC8800S Standalone version currently supports up to 8 telephone or data channels. An extreme temperature version (-20°C to 70°C), TC8800T, is also available.

The TC8800 Series works with all types and sizes of multimode or single mode fiber optic cable at 850/1300/1550nm. Fiber optic connectors are ST or FC. RJ-11F ports are provided on the rear side to connect with telephones. Power redundancy is standard; optical redundancy is optional. Power is 12Vdc; 115/230VAC and 24VDC are optional.

Media Converter

ATSCXL-32M1-2

10/100 Base-TX/FX Bridge Converter 2KM, SC Connector (Multi-Mode)
Media Converter

ATSCXL-32M2-2

10/100 Base-TX/FX Bridge Converter 2KM, ST Connector (Multi-Mode)
Media Converter

ATSCXL-32S1-20

10/100 Base-TX/FX Bridge Converter 20KM, SC Connector (Single-Mode)
Media Converter

ATSCXL-32S1-40

10/100 Base-TX/FX Bridge Converter 40KM, SC Connector (Single-Mode)
Media Converter

ATSCXL-32S1-60

10/100 Base-TX/FX Bridge Converter 60KM, SC Connector (Single-Mode)
Media Converter

ATSCXL-32S1-100

10/100 Base-TX/FX Bridge Converter 100KM, SC Connector (Single-Mode)
Media Converter

ATSCXL-LFPSC-M2

10/100 Base-TX/FX Bridge Converter 2KM, SC Connector, with LFP Function (Multi-Mode)

Media Converter

ATSCXL-B32S1-20

10/100 Base-TX/FX Single Fiber (BIDI) Bi-Directional Converter 20Km, SC Connector (Tx:1310nm Rx:1550nm over One Fiber)
Media Converter

ATSCXL-B33S1-20

10/100 Base-TX/FX Single Fiber (BIDI) Bi-Directional Converter 20Km, SC Connector (Tx:1550nm Rx:1310nm over One Fiber)
Media Converter

ATSCXL-MTS1121-20

100 Base FX Multi-Mode to Single-Mode Converter, SC Connector (Multi-Mode 2Km to Single-Mode 20Km)
Media Converter

ATSCXL-MTS1121-40

101 Base FX Multi-Mode to Single-Mode Converter, SC Connector (Multi-Mode 2Km to Single-Mode 40Km)
Media Converter

ATSCXL-MTS1121-60

102 Base FX Multi-Mode to Single-Mode Converter, SC Connector (Multi-Mode 2Km to Single-Mode 60Km)
Media Converter

ATSCXL-G2M1-550

Gigabit Ethernet 1000Mbps Media Converter, 500m, SC Connector (Multi-Mode)
Media Converter

ATSCXL-G2S1-10

Gigabit Ethernet 1000Mbps Media Converter, 10Km, SC Connector (Single-Mode)
Media Converter

ATSCXL-BG2S1-10

Gigabit Ethernet 1000Mbps (BIDI) Bi-Directional Media Converter, 10Km, SC Connector (Tx:1310nm and Rx:1550nm Over One Fiber)
Media Converter

ATSCXL-BG3S1-10

Gigabit Ethernet 1000Mbps (BIDI) Bi-Directional Media Converter, 10Km, SC Connector (Tx:1550nm and Rx:1310nm Over One Fiber)
Media Converter

ATSCXL-BG2S1-20

Gigabit Ethernet 1000Mbps (BIDI) Bi-Directional Media Converter, 20Km, SC Connector (Tx:1310nm and Rx:1550nm Over One Fiber)
Media Converter

ATSCXL-BG3S1-20

Gigabit Ethernet 1000Mbps (BIDI) Bi-Directional Media Converter, 20Km SC Connector (Tx:1550nm and Rx:1310nm Over One Fiber)
