    Rack Mount Fiber Optic Patch Panels

    American Data Supply's rackmount fiber optic patch panel enclosures are designed for direct termination of up to 144 fibers. The RAC series accommodates up to 12 modular panels and is equipped with routing guides to limit bend radius and enhance strain-relief control. The heavy-duty metal body provides excellent protection for the inside fibers. A large variety of connector adapters are offered to meet your specific requirements. MTP module cassettes and module preassemblies are available for easy fiber installation and management.



    Rack Mount Fiber Optic Patch Panel Applications

    Premise data network cabling and installations
    Central office locations for Telco applications
    Head-end location for CATV applications
    Termination of interconnect cables at entry or intermediate cross connects
    Termination of horizontal cables, cross connection of backbone cables to jumper cables
    Splice capability with splice trays loaded.
    Features and Benefits

    Fits 19-inch and 23-inch racks
    1U, 2U, and 4U available.
    Durable, clear front door for easy viewing of the interior; removable backboard for easy access of terminated cables
    Removable top lid for easy access for 2U products
    Front Plexiglass and rear steel doors with ¼ turn latches to allow easy access from both sides
    Strain-relief hardware and routing guides help maintain minimum bend radius.
    Available fully populated with adapters, pigtails and slice trays or unloaded
    Labeling kit, zip ties and installation screws included
    Competitive pricing and prompt delivery

    36 Port Rack Mount Fiber Optic Enclosure- Rack Mount Fiber Patch Panel Part No. ATSRAC-1X- Price $87.00
    Dimensions: Width = 17'', Depth = 12'', Height = 1.75''
    Weight (unloaded): 10.3 lbs.
    Port Capacity: 6-36
    Features: 1U rackmount can be loaded with up to 3 panels with 6 to 36 port capacity. Reversible mounting bracket for 19'' or 23'' racks. 16-gauge steel with black powder finish coat. Steel door at front and at rear with ¼ turn latches. Top lid removable at both front and rear. Cable management spools in the rear of the enclosure and cable management rings to the front for jumper management. Sliding tray for access to both front and rear. Large entry points at front for easy jumper management, as well as "D" shaped cutouts at rear for access of backbone cable. Accessory pack included with additional cable management, label holders and screws for securing to rack and top panels. Labeling kit included for clear and precise identification of ports.
    Lead time: In Stock, Immediate Shipment

    ATS 19” Rack Mount Fiber Optic Enclosure

    The 12 Port and 24 Port Rack Mount Enclosures from American Data Supply are used to house fiber terminations and accommodate patching of fiber links.

    • The rear panel workspace has two cable retention rings for storage of excess fiber.
    • Enclosure is constructed of 16 gauge steel with convenient swivel out base for easy access to fiber optic cables.
    • Call FIS at 1-800-500-0347 to order in black 16 gauge steel.

    Part No. ATSRAC-12-OP ATS19" 12 Port Rack Mount Enclosure, Holds 2 ( 6 Packs ) Price $ 56.00

    Part No. ATSRAC-24-OP American Data Supply 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 75.00

    New is a ATS-RS24 and American Data Supply F1-RS72 rack mount splice and termination enclosure. Allows for patching on top and convenient organization of splice trays in the bottom shelf. Both 24 and 72 patch and splice versions are available. Call American Data Supply at (866) 342-3721 to order in black 16 gauge steel. .

    • Enclosure is constructed of 16 gauge steel with convenient swivel out base for easy access to fiber optic cables.
    • Call American Data Supply at (866) 342-3721 to order in black 16 gauge steel.

    Part No. ATSRS-24 American Data Supply 19" 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) ) Price $ 189.00 each

    Part No. ATSRS American Data Supply 72 Port Rack Patch & Splice Enclosure ) Price $ 270.00 each

    The American Data Supply Rack Mount Enclosure is designed for low or high density patching applications. This sturdy 16 gauge aluminum rack enclosure is available in 24, 48, 72, 96 and 144 port versions in standard beige. This unit provides a lift-off door with front and back access to the slideout tray. The ATS Rack Mount Enclosure features a smoked Lexan front door. Call ATS at 1-866-342-3721 to order in black 16 gauge steel.

    • Enclosure is constructed of 16 gauge steel with convenient swivel out base for easy access to fiber optic cables.
    • Call American Data Supply at (866) 342-3721 to order in black 16 gauge steel.
    • ATS-F1RM144X - 144 Port Rack Mount Enclosure, unloaded, holds 24 six packs, 13 1/2"D x 17 1/8"W x 15"H, 19lbs.
    • ATS-F1RM24XA - 24 Port Rack Mount Enclosure, unloaded, holds 4 six packs, 13 1/4"D x 17 1/8"W x 3 1/2"H, 12lbs.
    • ATS-F1RM48X - 48 Port Rack Mount Enclosure, unloaded, holds 6 eight packs, 13 1/4"D x 17 1/8"W x 4 3/4"H, 14lbs.
    • ATS-F1RM72X - 72 Port Rack Mount Enclosure, unloaded, holds 12 six packs, 13 1/4"D x 17 1/8"W 7 1/8"H, 17lbs.

    Part No. ATS-F1RM144X- American Data Supply 144 Port Rack Mount Enclosure, Holds 24 ( 6 Packs ) Price $ 245.00 each

    Part No. ATS-F1RM24XA -American Data Supply 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) Price $ 99.00 each

    Part No. ATS-F1RM48X- American Data Supply 48 Port Rack Mount Enclosure, Holds 6 ( 8 Packs ) Price $ 112.00 each

    Part No.ATS-F1RM72X ATSATS 72 Port Rack Mount Enclosure, Holds 12 ( 6 Packs ) Price $170.00 each ------------------------ FIS 24 Port Rack Mount Enclosure, Holds 4 ( 6 Packs ) ---- --

    24 port Rack Mount Fiber Optic Enclosure- Rack Mount Fiber Optic Patch Panel Part No. ATSRAC-12X-Price $96.00
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-24
    Features: 2U rackmount can be loaded with 2 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    48 Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. ATSRAC-24X- Price $100.50
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-48
    Features: 2U rackmount can be loaded with 4 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipmen
    t

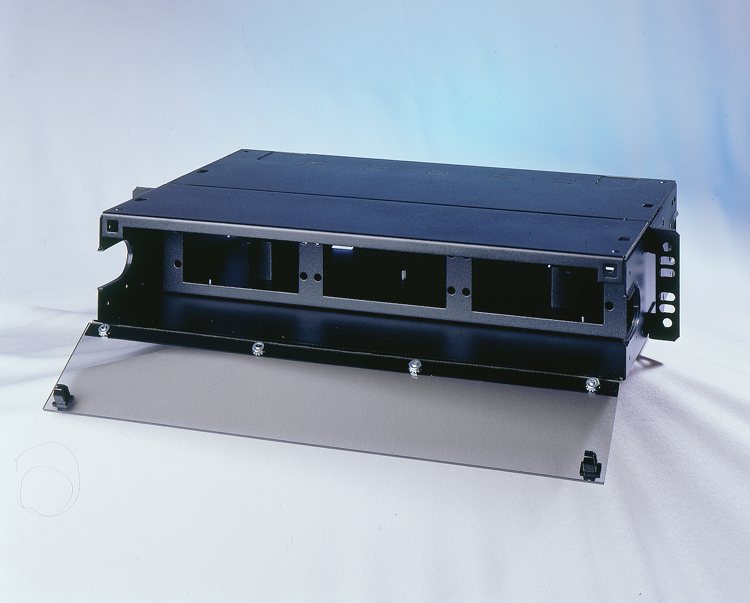

    72 Port Rack Mount Fiber Optic Enclosure- Rack Mount Patch Panel Part No. American Data Supply RAC-2X- Price $105.00
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-72
    Features: 2U rackmount can be loaded with 6 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Sliding tray for high-density situations. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    144 Port Rack Mount Enclosure- Rack Mount Fiber Patch PanelPart No. RAC-4X Price- $173.25
    Dimensions: Width = 17'', Depth = 12'', Height = 7''
    Weight (unloaded): 11.5 lbs.
    Port Capacity: 6-144
    Features: 4U enclosure can be loaded with 12 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extensions for 23'' racks. 16-gauge steel with corrosion-resistant black powder finish coat.
    Lead time: In Stock, Immediate Shipment

    Part No. ATSRAC-1X
    Dimensions: Width = 17'', Depth = 12'', Height = 1.75''
    Weight (unloaded): 10.3 lbs.
    Port Capacity: 6-36

    Features: 1U rackmount can be loaded with up to 3 panels with 6 to 36 port capacity. Reversible mounting bracket for 19'' or 23'' racks. 16-gauge steel with black powder finish coat. Steel door at front and at rear with ¼ turn latches. Top lid removable at both front and rear. Cable management spools in the rear of the enclosure and cable management rings to the front for jumper management. Sliding tray for access to both front and rear. Large entry points at front for easy jumper management, as well as "D" shaped cutouts at rear for access of backbone cable. Accessory pack included with additional cable management, label holders and screws for securing to rack and top panels. Labeling kit included for clear and precise identification of ports.
    Lead time: In Stock, Immediate Shipment

    Part No. ATSRAC-12X
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-24

    Features: 2U rackmount can be loaded with 2 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    Part No.ATSRAC-24X
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-48

    Features: 2U rackmount can be loaded with 4 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    Part No. RAC-2X
    Dimensions: Width = 17'', Depth = 12'', Height = 3.5''
    Weight (unloaded): 12 lbs.
    Port Capacity: 6-72

    Features: 2U rackmount can be loaded with 6 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extension brackets for 23'' rack. 16-gauge steel with black powder finish coat. Removable top lid for easy access to fiber. Sliding tray for high-density situations. Spools at the rear for neat and clean cable management.
    Lead time: In Stock, Immediate Shipment

    Part No. RAC-4X
    Dimensions: Width = 17'', Depth = 12'', Height = 7''
    Weight (unloaded): 11.5 lbs.
    Port Capacity: 6-144

    Features: 4U enclosure can be loaded with 12 panels (6-, 8- or 12-fiber panels). 19'' rack-mountable enclosure available with extensions for 23'' racks. 16-gauge steel with corrosion-resistant black powder finish coat.
    Lead time: In Stock, Immediate Shipment

    Part Number
    Fiber Optic Enclosures &Fiber Optic Patch Panels
    Suggested Price
    ATSRAC-1X Rack Mount 1U Patch Panel up to 36 Ports $87.00
    ATSRAC-12X Rack Mount 2U Patch Panel up to 24 Ports $96.00
    ATSRAC-24X Rack Mount 2U Patch Panel up to 48 Ports $100.50
    ATSRAC-2X Rack Mount 2U Patch Panel up to 72 Ports $105.00
    ATSRAC-4X Rack Mount 2U Patch Panel up to 144 Ports $173.25
    ATSWAC-2X Wall Mount patch panel up to 24 ports $37.49
    ATSWAC-4X Wall Mount patch panel up to 48 ports $56.25
    ATSWAC-8X Wall Mount patch panel up to 96 ports $122.63
    ATSAP-106ST 6 Pack ST PB Insert MM/SM Adapter Panel $10.43
    ATSAP-108ST 8 Pack ST PB Insert MM/SM Adapter Panel $14.93
    ATSAP-112ST 12 Pack ST PB Insert MM/SM Adapter Panel $24.00
    ATSAP-106SC 6 Pack SC PB Insert MM/SM Adapter Panel $13.43
    ATSAP-108SC 8 Pack SC PB Insert MM/SM Adapter Panel $24.00
    ATSAP-104DSC 4 Pack Duplex SC PB Insert MM/SM Adapter Panel $24.00
    ATSAP-106DSC 6 Pack Duplex SC PB Insert MM/SM Adapter Panel $30.00
    ATSAP-106MTRJ 6 Pack MTRJ (12 fibers) Mating Sleeve MM/SM Adapter Panel $24.00
    ATSAP-112MTRJ 12 Pack MTRJ (24 fibers) Mating Sleeve MM/SM Adapter Panel $45.00
    ATSAP-106LC 6 Pack LC PB Insert adapter panel $36.00
    ATSAP-106FC 6 Pack FC PB Insert adapter panel $24.00
    ATSAP-108FC 8 Pack FC PB Insert adapter panel $33.00
    ATSAP-112FC 12 Pack FC PB Insert adapter panel $39.00
    ATSRAC-1X Wall Mount patch panel up to 24 ports $42.90

    Call (866) 342-3721 Or Click On The Chat Button At The Top Of The Page To Talk To One Of Our Representatives
