American Data Supply's rackmount patch enclosures are designed for direct termination of up to 144 fibers. The RAC series accommodates up to 12 modular panels and is equipped with routing guides to limit bend radius and enhance strain-relief control. The heavy-duty metal body provides excellent protection for the inside fibers. A large variety of connector adapters are offered to meet your specific requirements. MTP module cassettes and module preassemblies are available for easy fiber installation and management. Applications
* Premise data network cabling and installations | ||||
    |  | American
Data Supply's rack mount fiber optic patch
panels come blank or preloaded. The blank patch panels accept adapter panels from
the ICFOP section, making them quick and easy to custom-load. The preloaded patch
panels come equipped with the most popular adapters, with either metal or ceramic
alignment sleeves, to accommodate most fiber optic applications. All loaded fiber
patch panels come equipped with 12-24 x 5/8 inch rack screws. Patch panels require
the use of 12-24 x 5/8 inch (ICACS01xx) rack screws for mounting on a distribution
rack and 10-32 x 5/8 inch rack screws (ICACSS02BK) for mounting on a cable management
rack.
| ||
| ITEM NUMBER | | DESCRIPTION | |
| Blank Patch Panels | |||
| ICFORPP1RM | 1 RMS*, 3-Adapter Panel Capacity | ||
| ICFORPP2RM | 2 RMS*, 6-Adapter Panel Capacity | ||
| Loaded Patch Panels, Metal Sleeve | |||
| ICFORPPAC1 | 12 MM/SM Duplex SC adapters, loaded 1RMS* | ||
| ICFORPPAR1 | 12 MM/SM Duplex SC/ST adapters, loaded 1 RMS* | ||
| ICFORPPAS1 | 24 MM/SM Simplex SC adapters, loaded 1RMS* | ||
| ICFORPPAT1 | 24 MM/SM Simplex ST adapters, loaded 1RMS* | ||
| Loaded Patch Panel, Ceramic Sleeve | |||
| ICFORPPAC2 | 12 SM Duplex SC adapters, loaded 1 RMS* | ||
| ICFORPPAR2 | 12 SM Duplex SC/ST adapters, loaded 1 RMS* | ||
| ICFORPPAS2 | 24 SM Simplex SC adapters, loaded 1 RMS* | |
| ICFORPPAT2 | 24 SM Simplex ST adapters, loaded 1 RMS* | ||
| Loaded Patch Panel, MT-RJ | |||
| ICFORPPAM1 | 24 MM/SM Duplex MT-RJ adapters, loaded 1 RMS | ||
| *1 RMS = 1 rack mount space, 1.75" | |||
Click
on Either Link For Your Needs
 :
Rack Mount Enclosures--------------------------------------------Wall Mount Fiber Enclosures
NEMA
RATED FIBER OPTIC ENCLOSURES We can supply you with a full line of standard
and special NEMA rated enclosures and components well suited for Homeland Security
Product support. Our own complete fiber-optics product offering can be leveraged
in certain cases to minimize lead-time and provide value added solutions in a
short time period
| Fiber
Optic Enclosures  Fiber
Optic Patch Panels | ||
| ATSRAC-1X | Fiber OpticRack Mount 1U Patch Panel up to 36 Ports | $87.00 |
| ATSRAC-12X | Fiber Optic Rack Mount 2U Patch Panel up to 24 Ports | $96.00 |
| ATSRAC-24X | Fiber Optic Rack Mount 2U Patch Panel up to 48 Ports | $100.50 |
| ATSRAC-2X | Fiber Optic Rack Mount 2U Patch Panel up to 72 Ports | $105.00 |

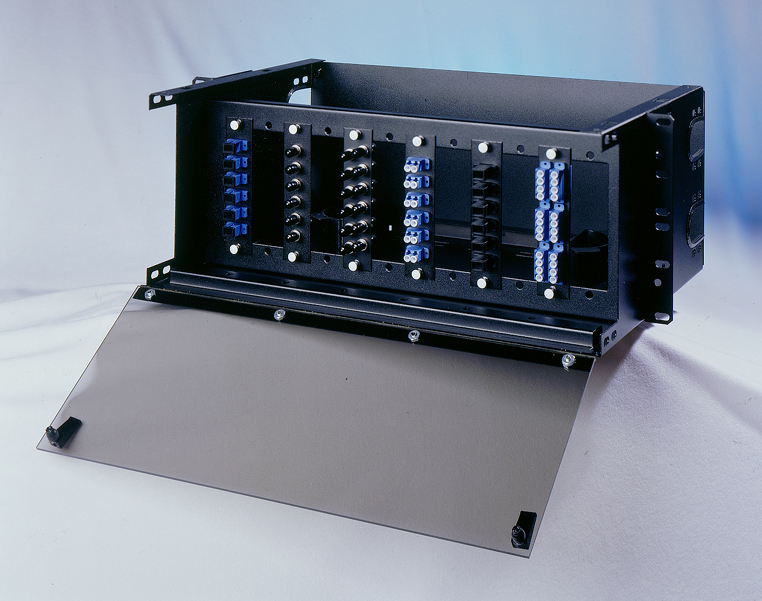

| ATSRAC-4X | Fiber Optic Rack Mount 2U Patch Panel up to 144 Ports | $173.25 |

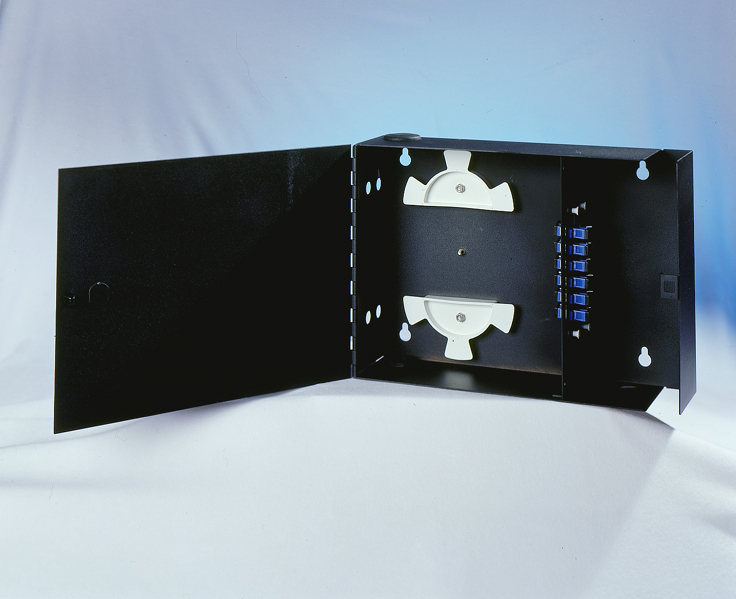

| ATSWAC-2X | Fiber Optic Wall Mount patch panel up to 24 ports | $37.49 |
| ATSWAC-4X | Fiber Optic Wall Mount patch panel up to 48 ports | $56.25 |
| ATSWAC-8X | Fiber Optic Wall Mount patch panel up to 96 ports | $122.63 |
| ATSAP-106ST | 6 Pack ST PB Insert MM/SM Fiber Optic Adapter Panel | $10.43 |
| ATSAP-108ST | 8 Pack ST PB Insert MM/SM Fiber Optic Adapter Panel | $14.93 |
| ATSAP-112ST | 12 Pack ST PB Insert MM/SM Fiber Optic Adapter Panel | $24.00 |
| ATSAP-106SC | 6 Pack SC PB Insert MM/SM Fiber OpticAdapter Panel | $13.43 |
| ATSAP-108SC | 8 Pack SC PB Insert MM/SM Adapter Panel | $24.00 |
| ATSAP-104DSC | 4 Pack Duplex SC PB Insert MM/SM Fiber Optic Adapter Panel | $24.00 |
| ATSAP-106DSC | 6 Pack Duplex SC PB Insert MM/SM Fiber Optic Adapter Panel | $30.00 |
| ATSAP-106MTRJ | 6 Pack MTRJ (12 fibers) Mating Sleeve MM/SM Fiber Optic Adapter Panel | $24.00 |
| ATSAP-112MTRJ | 12 Pack MTRJ (24 fibers) Mating Sleeve MM/SM Fiber Optic Adapter Panel | $45.00 |
| ATSAP-106LC | 6 Pack LC PB Insert Fiber Optic adapter panel | $36.00 |
| ATSAP-106FC | 6 Pack FC PB Insert Fiber Optic adapter panel | $24.00 |
| ATSAP-108FC | 8 Pack FC PB Insert Fiber Optic adapter panel | $33.00 |
| ATSAP-112FC | 12 Pack FC PB Insert Fiber Optic adapter panel | $39.00 |
